12V battery and Solar Powered Fan

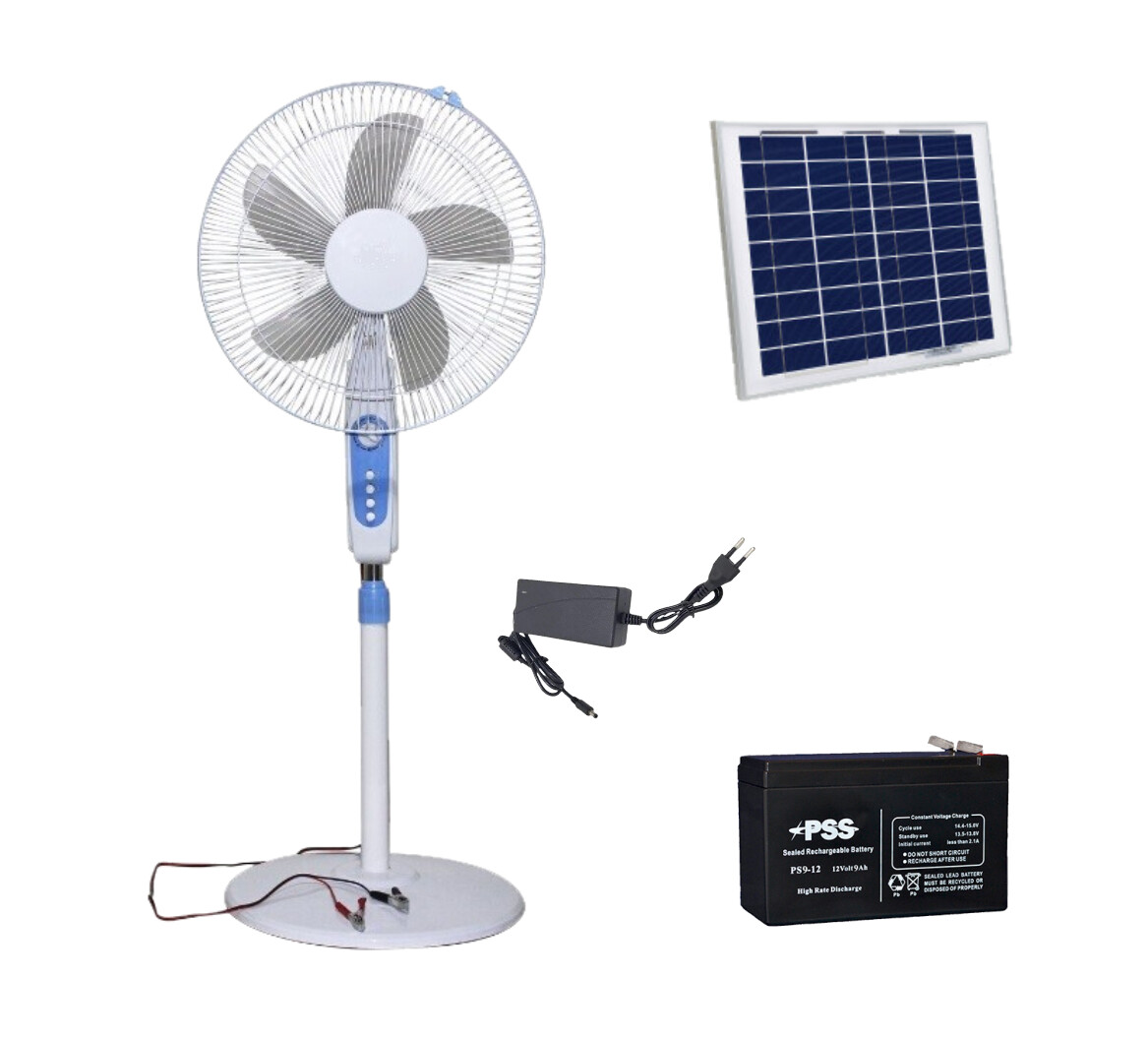

System items:

1) 16" Battery operated floor Standing fan

2) 12V 10W Solar Panel

3) 12V 9Ahr Lead Acid Battery

4) 12V 3A AC Power Supply

5) DC Connectors and DC Jacks

DC Fan Information:

12V Battery Floor Standing Fan:

* Height - 1.2m (height adjustable)

* Weight - 4kg

* Accessories - Connect Wire with Battery Clips

* Max power - 15Watt (1.25A)

* Running Wattage - 7.5Watt (0.6A)

* Wire 1.4m

* Function - 5 Blades / 3 gears/ timing (60min)

* Color - White

* Floor Fan

Battery Information:

12V 9Ahr Lead Acid battery:

* 50% depth of discharge (600Cycles)

* C/20 Capacity on 9A/hr battery

* Discharge over 20 hours

*5.5W per hour over 20 hours give 108W/hr storage capacity.

Solar Panels Information:

12V 10W Solar Panel:

* 10W solar panel will charge 0.57A per hour.

* 10W solar panel will charge an average of 2.8A per sunny day. (35W/hr per day)

AC Power Supply information:

12V 3A AC Power Supply:

* 3A Power Supply

* Maximum 3A (36W)

* Recommended 2A (24W)
