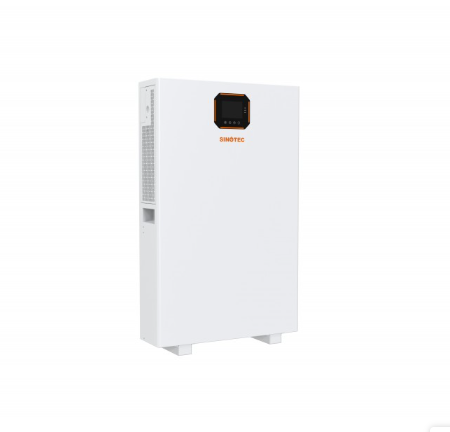

Elevate your energy independence with the SINOTEC 5kW, 48VDC Hybrid Inverter – AIO, a game-changing solution designed to revolutionize your power systems. This hybrid inverter seamlessly integrates dual MPPT technology, delivering maximum power output from your solar panels and ensuring efficient energy conversion. Whether you’re looking to reduce energy costs or enhance sustainability, the AIO is your gateway to reliable and eco-friendly power.
Product Features:
Dual MPPT technology is at the heart of the 5KW-AIO, maximizing the efficiency and performance of your solar panels. With dual maximum 22A input current, this inverter is perfectly compatible with high-power PV panels, ensuring optimal energy harvesting even in challenging conditions.
Industrial design meets modern aesthetics with the 5kW AIO, blending functionality with a sleek and contemporary look. Despite its advanced features, this hybrid inverter is easy to install and simple to use, making it accessible to both professionals and homeowners.
Technical Specifications:
Inverter Output:
Rated Output Power: 5,000W
Max. Peak Power: 10,000W
Switch Time: 10ms (typical)
On-Grid Output:
Rated Output Power: 5000W
Max. Apparent power: 5000VA
Max. Grid Output Current: 21A
Bypass Overload Current: 40A
Battery:
Battery Type: Lead-acid / Li-ion / User Defined
Rated Battery Voltage: 48V (minimum starting voltage 44V)
Voltage Range: 40～60Vdc
Max. PV charging current: 100A
Max. Mains/Generator Charging Current: 100A
PV Input:
Num. of MPP Trackers: Yes
Max. PV array power: 5500W
Max. input current: 22A
Max. Voltage of Open Circuit: 500Vdc
MPPT Voltage Range: 120～450Vdc
General:
Dimensions: 880550115mm
Weight: 19kg
Cooling Method: Forced air cooling, variable speed of fan
Warranty: 5 years
Ensure that your battery bank’s power and storage capacity meet the HT-8KW-A’s requirements for optimal performance. Professional installation by a qualified electrician/technician is essential, adhering to local wiring regulations and standards.
