Suitable for all applications and industries: Telecommunications, Process Control, Power Stations, Solar & Wind, UPS, Railway Systems, Backup Power Systems, Emergency Lighting, Streetlights, Fire & Security Systems, Cell Towers, Hospitals, Banks, Computer Centers.
High Corrosion Resistant Performance: Pb-Ca multi-alloy grid.
Superior Charge Acceptance.
Outstanding High and Low Temperature Performance.
Optimized Capability of instant High-current Discharging.
Excellent Deep Discharge Cycle Life.
Design Floating Life is 15 Years.
Technical Specifications

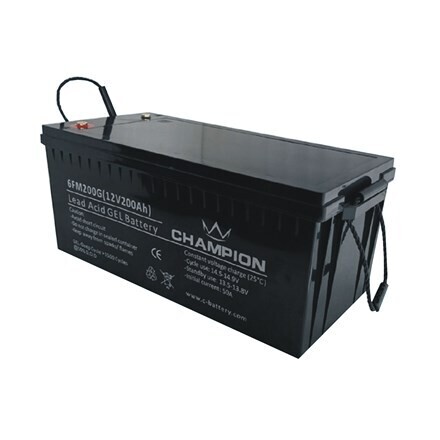

Battery Type GEL Lead Acid
Nominal Voltage: 12V.
Rated Capacity: 10 Hour Rate (20A to 10.8V)/200Ah, 3 Hour Rate (50A to 10.8V)/150Ah, 1 Hour Rate (124A to 9.6V)/124Ah.
Internal Resistance: ±4.8mΩ.
Self-discharge Rate: 3%/month @ 25°C.
Operating Temperature Range: Discharge (-40°C~60°C), Charge (-40°C~60°C), Storage (-40°C~50°C).
Charging Methods: Floating Use (13.5V~13.8V @ 25°C), Cycling Use (14.4V~15.0V @ 25°C).
Max Charge Current: 40.0A.
Cycle Life and usage
Very important!!
The cycle service life of the battery is in relation with Depth Of Discharge (DOD) and Discharge Rate per hour.
100% DOD per day (350-500 Cycles or less) or 12-16 months life expectancy (10 hour discharge rate)
80% DOD per day (500-800 Cycles) or 16-24 months life expectancy (10 hour discharge rate)
50% DOD per day (1500-1800 Cycles) or 4-5 years life expectancy (10 hour discharge rate)
25% DOD per day (2000-2600 Cycles) or 6-7 years life expectancy (10 hour discharge rate)
Dimensions and Weight
Length: 522mm (±2mm).
Width: 238mm (±2mm).
Height: 220mm (±2mm).
Total Height: 222mm (±2mm).
Weight: 58.5kg.
1 year Manufacturer’s Limited Warranty
Battery Warranty and Battery Returns Policy
Please Note: The manufacturer's defect warranty only covers manufacturing defects and does not cover incorrect use or abuse.
Please Note: The Limited Manufacturer’s Warranty is subject to a number of important exclusions and limitations. This Limited Warranty does not apply to any defect resulting from any of the following, each of which may result in your Limited Warranty being voided:
• Abuse, misuse or negligence.
• The removal of the Serial Number.
• Accidents or force majeure events, including but not limited to lightning, flood, earthquake, fire, extreme cold weather, or other events outside the reasonable control of Solar Corporation.
• Operating the battery outside the parameters as set out in the datasheet.
• Inadequate charging through improper design and/or sub-standard equipment.
