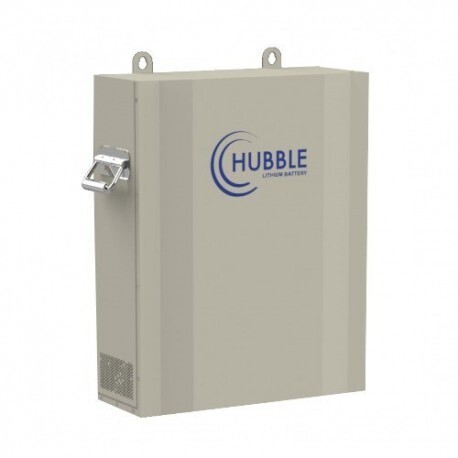

Hubble AM-2 5.5kWh Lithium Battery (Wall Mount or Rack Mount)
Hubble's range of Lithium batteries communicates with a wide range of inverters through CAN bus (please see list below).
The AM Series stands for Any Mount. This gives installers more flexibility to either rack mount in a standard server cabinet or wall mounts the batteries. All AM models have full native (out the box) CAN bus integration and communication.
Features and Functions
Advanced BMS with current limiting function.
CAN Bus, fully integrates and communicates with leading Inverter brands.
Excellent high temperature performance.
High Cycle Life and Service Life.
RIOT integration ready for cloud monitoring.
1C High Performance Lithium battery.
High Energy Density and conversion efficiency.
Complete with integrated Battery Management System.
Compatible with most Inverters and chargers.
Low self-discharge.
Easy wall mount or shelf rack installation.
Heavy duty side handles for easy handling and mounting on the wall.
Built in protection for over-charge, over-discharge & over-temperature.
Specifications
Model: Hubble AM-2.
Rated Capacity (5HR): 110 Ah.
Voltage: 51.0 V.
Discharge Cut-off Voltage: 42.0 V.
Equilized Charge Voltage: 53.6 V.
Max. Continuous Charging Current: 100 A.
Max. Continuous Discharging Current: 100 A.
Weight: Approx. 42 Kg.
Dimensions (WxDxH) mm: 375mm x 145mm x 467mm.
Ports: 1x CAN-bus, 2x RS-485 Battery Link ports, 1x RS232.
