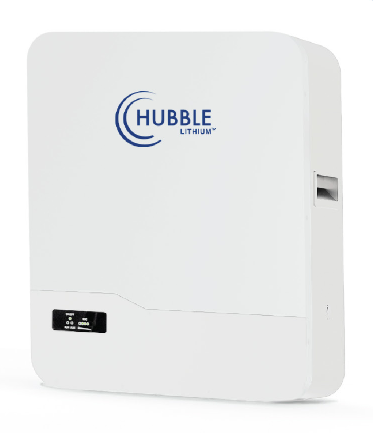

Hubble AM-5 5.12kWh Lithium Battery - Unlimited Cycles (Wall Mount or Rack Mount)
Hubble Lithium's AM5 model is a low voltage (51V), 5.12kWh battery made up of superior prismatic lithium-ion (LFP) cells. These battery cells have more energy density and a longer cycle life compared to standard lithium cells.
Hubble's range of Lithium batteries communicates with a wide range of inverters through CAN bus (please see list below).
The AM Series stands for Any Mount. This gives installers more flexibility to either rack mount in a standard server cabinet or wall mounts the batteries. All AM models have full native (out the box) CAN bus integration and communication.
Features and Functions
Delivers unlimited charge-discharge cycles within the warranty period.
Capable of paralleling up to 8 x units in a single string giving a total storage capacity of 40.96kWh.
1C battery capable of providing a continuous charge/discharge power of 5.12kW.
Versatile compatibility with leading inverter brands such as Victron, Kodak and Sunsynk.
10-year warranty, 15-year design life for the battery cells.
Installation flexibility – the battery can either be wall-mounted or rack mounted.
Remote monitoring via the optional Hubble Cloudlink device.
Heavy duty side handles for easy handling and mounting on the wall.
Unlimited cycles within the warranty period
Specifications
Model: Hubble AM-5.
Rated Capacity : 100 Ah. (5120W)
Voltage: 51.0 V.
Discharge Cut-off Voltage: 5.12kW.
Equilized Charge Voltage: 55.2 V.
Max. Continuous Charging Current: 100 A.
Max. Continuous Discharging Current: 100 A.
Weight: Approx. 51 Kg.
Dimensions (WxDxH) mm: 509mm x 173mm x 599mm.
Ports: 1x CAN-bus, 2x RS-485 Battery Link ports, 1x RS232.
