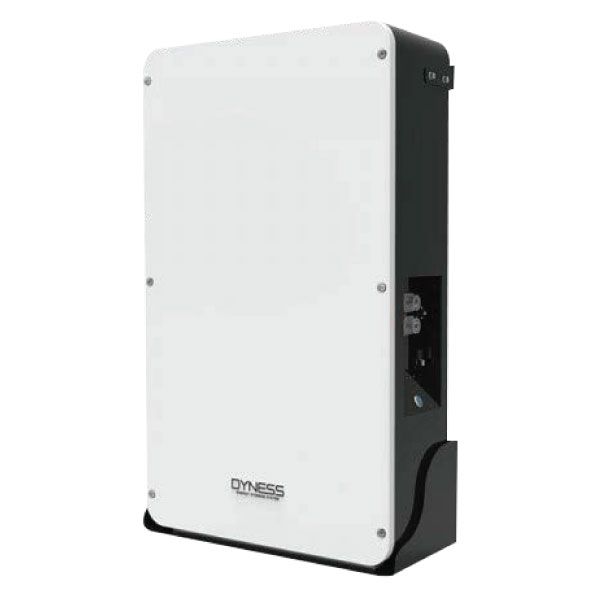

Dyness 10.24kWh Lithium Battery (Wall Mount or Floor Standing)

Experience True Power Independence with Dyness Powerbox Pro DYPB51200 – Your Ultimate Energy Solution

Introducing the Dyness Powerbox Pro DYPB51200, a cutting-edge deep-cycle, high-capacity lithium battery that redefines the way you harness and store energy. With the flexibility of wall-mounted and land-based installation, this powerhouse delivers a staggering 10.24kWh of energy per single unit, making it the ideal solution to meet your household’s electricity demands efficiently and effectively.

Dyness range of Lithium batteries communicates with a wide range of inverters through CAN bus (please see list below).

Any Mount. This gives installers more flexibility to either rack mount in a standard server cabinet or wall mounts the batteries. All Dyness models have full native (out the box) CAN bus integration and communication.

Features and Functions

• Key Features and Benefits:
  • High Capacity, Deep Cycle Lithium Battery: The Powerbox Pro is designed to cater to your residential electricity consumption needs with ease. Its LiFePO4 chemistry ensures both safety and a longer cycle life, providing you with a reliable and sustainable power solution.
  • Multiple Specifications: Choose from four different specifications to meet your specific energy requirements. No matter the size of your energy needs, Dyness has you covered.
  • Advanced APP Monitoring: Stay in control and monitor your energy consumption with the intuitive Powerbox Pro app. This allows you to make informed decisions about your energy usage.
  • Versatile Installation: The Powerbox Pro is highly adaptable, supporting both wall-mounted and land-based installation, ensuring it can seamlessly fit into your unique setup.
  • IP65 Protection: Built to withstand the elements, the Powerbox Pro offers IP65 protection, ensuring its durability and reliability even in challenging weather conditions.
  • Expandable: Need more power in the future? No problem. The Powerbox Pro can be flexibly expanded to accommodate your growing energy needs.

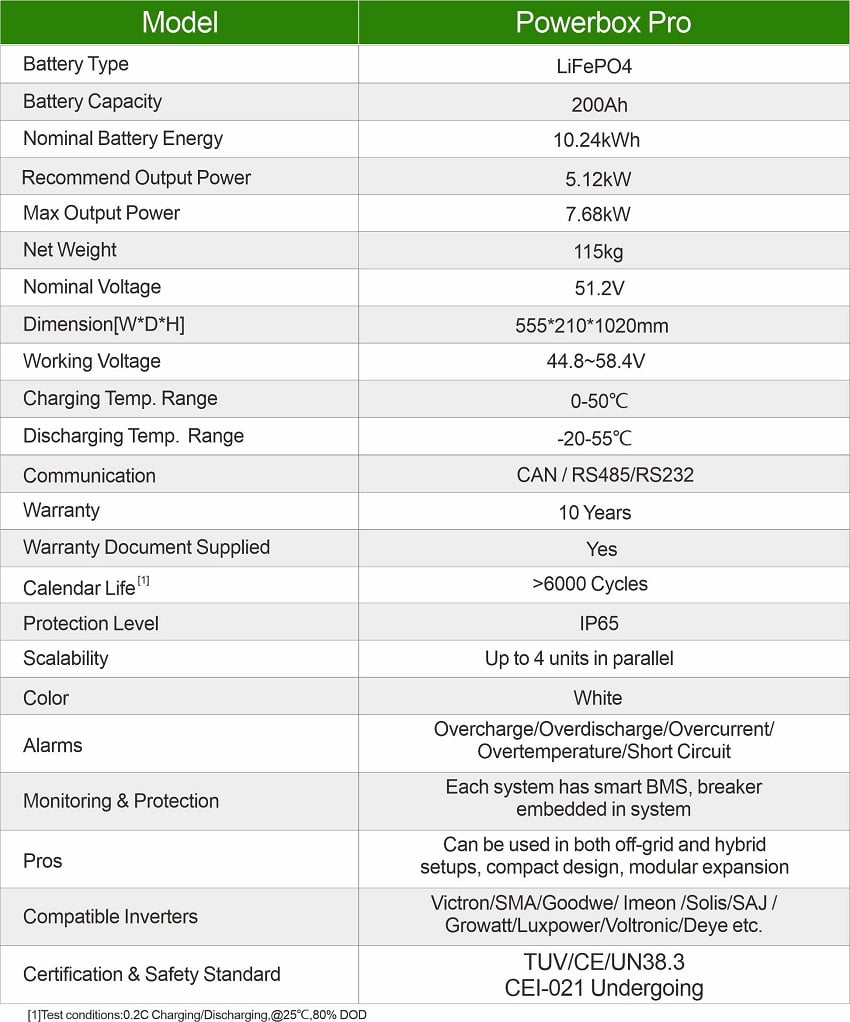

General Data

• Module Type: LFP

• Battery Module Capacity: 10.24KWH

• Operating Battery Voltage: 44.8~58.4VDC

• Battery Module Voltage: 51.2VDC

• Battery Module Capacity: 200AH

• Battery Cell Voltage: 3.2VDC

• Battery Module Charge / Discharge Current: 100A (Recommended) (0.5C)

• Battery Module Charge 100A

• MAX Discharge Current: 150A (Max) (0.75C)

• Discharge Condition: -20°C to 55°C

• Charge Condition: 0°C to 55°C

• Storage Condition: -10°C to 35°C

• Enclosure Protection: IP65

• Parallel Configuration: 4 Modules Maximum

• Communication: CAN / RS485 / R232

• Mounting: Wall Mount & Rack Mount

Battery Charge / Discharge Current
• 100A Recommended
• 150A Maximum
• 155A Peak @ 15S

Environment Limit
• Charge Condition: 0°C to 55°C
• Discharge Condition: -20°C to 55°C
• Enclosure Protection: IP65
