• High Cycle Life and Service Life.
• High Performance Lithium battery.
• Internal Battery Management System.
• Excellent high temperature performance.
• High energy density and conversion efficiency.
• Easy drop in replacement for old lead acid battery installs.
• BMS protects internal cells and ensures smooth operation.
• Compatible with most UPS & Inverters using AGM/VRLA charge setting.
• Built-in protection for over-charge, over-discharge & over-temperature.
• External cell balancer required when placing in series to ensure balancing.
• Perfect replacement Lithium solution for upgrading your lead acid installation.

Specifications

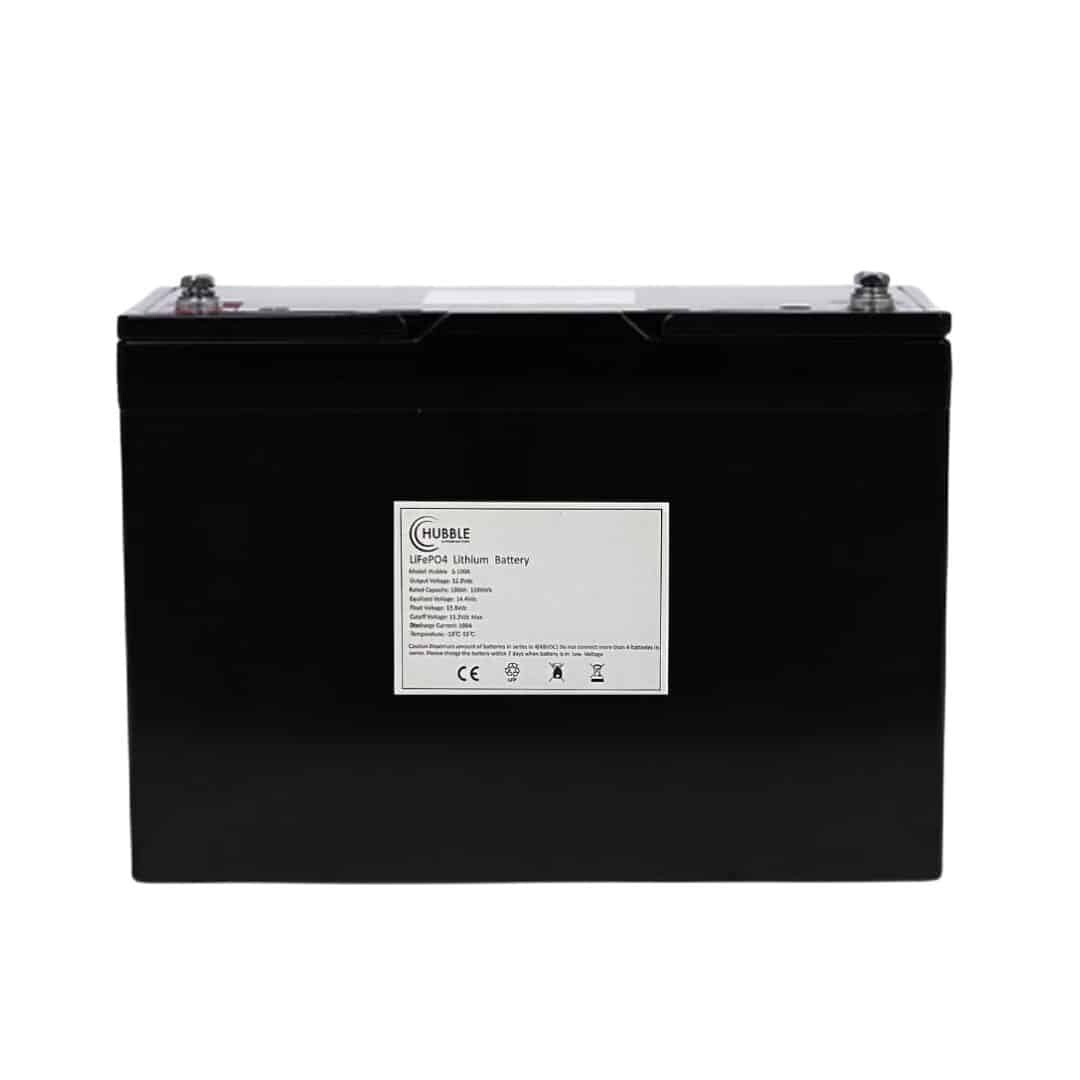

• Model: Hubble S-100
• Rated Capacity (5HR): 100 Ah.
• Nominal Voltage: 12.8 V.
• Discharge Cut-off Voltage: 11.0 V.
• Equalized Charge Voltage: 14.4 V.
• Max. Continuous Charging Current: 100 A.
• Max. Continuous Discharging Current: 100 A.

Technical Specifications:

Cell C Rating: 1.0C

Weight: Approx. 10.5kg

Configuration: 4 in series with 4 banks in parallel for maximum 16 batteries

Parallel: Parallel connection is up to 4 strings

Dimensions (W x D x H): 305mm x 170mm x 220 mm

Maximum DC Limits: Maximum 100 Amp Charge per bank & 100 Amp discharge per bank

Cells: 1st LiFe Prismatic LiFePO4

Design Life: +/- 15 years

Cycle Life @ 1C: +/- 4000 Cycles

Certification: CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015

Outer Package Material: Black Polypropylene Plastic

Operating Temperature: Charging: 0 to +55°C | Discharging: -20 to +55°C | Storage: -20 to +55°C

Protection: Electronic Circuit Breaker, BMS Voltage Protection, Under Voltage Protection

IP Rating: IP65
