Growcol range of Lithium batteries communicates with a wide range of inverters through CAN bus (please see list below).
Any Mount. This gives installers more flexibility to either rack mount in a standard server cabinet or wall mounts the batteries. All Growcol models have full native (out the box) CAN bus integration and communication.
Features and Functions
Specifications

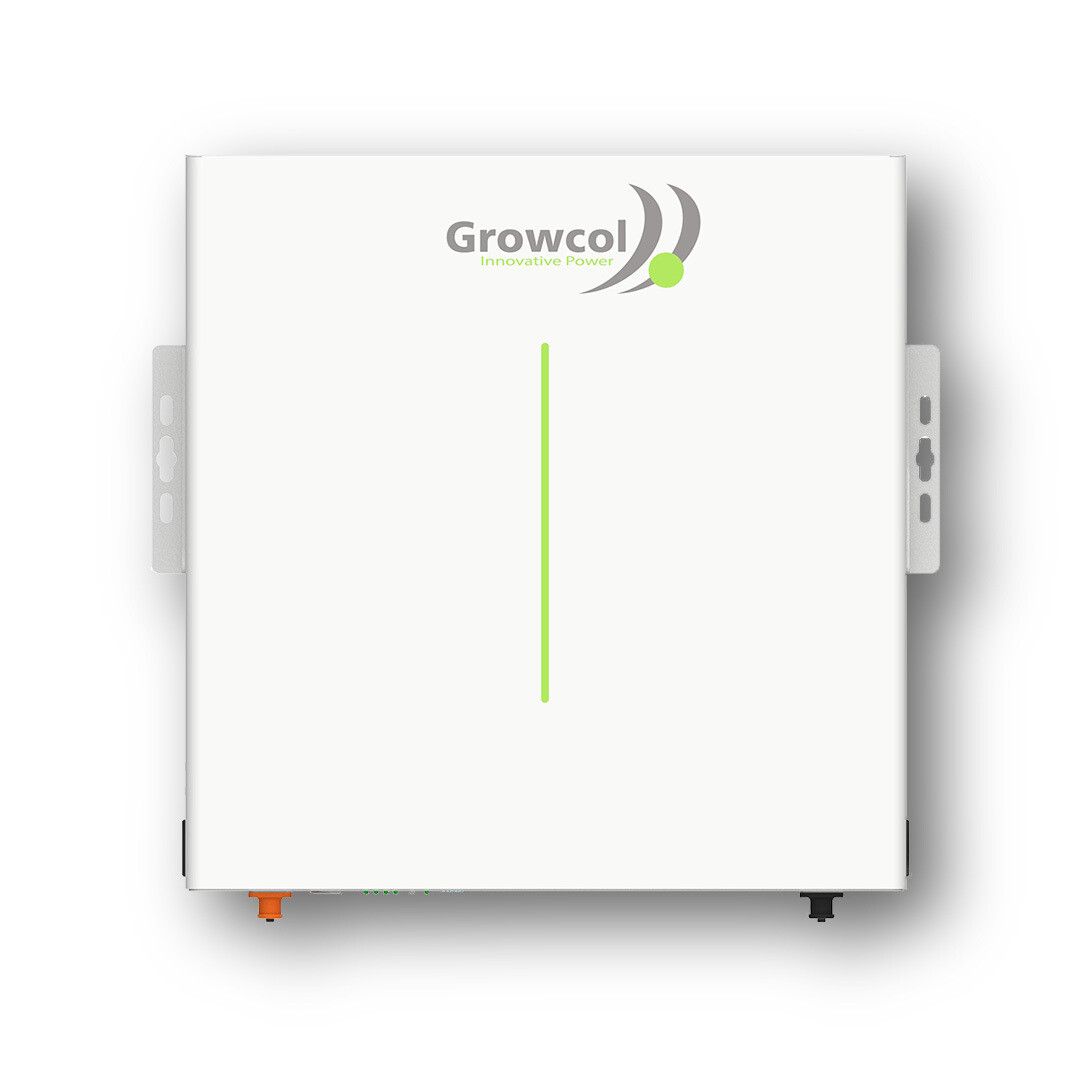

Model: Growcol 5.12
•
General Data
• Module Type: LFP
• Battery Module Capacity: 5.12KWH
• Battery Module Voltage: 51.2VDC
• Battery Module Capacity: 100AH
• Battery Cell Capacity: 320Wh
• Battery Cell Voltage: 3.2VDC
• Battery Cell Capacity: 100AH
• Battery Module Charge / Discharge Current: 50A (Recommended)
• Battery Module Charge / Discharge Current: 100A (Max)
• Discharge Cut-off Voltage: 43.2V
• Battery Module Cell Quantity: 16 PCS
• Discharge Condition: -20°C to 55°C
• Charge Condition: 0°C to 55°C
• Storage Condition: -10°C to 35°C
• Battery Module Charge Voltage: 56.4VDC
• Enclosure Protection: IP20
• Battery Module Cell Quantity in Series: 16 PCS
• Parallel Configuration: 40 Modules Maximum
• Communication: CAN / RS485
• Mounting: Wall Mount & Rack Mount
Battery Charge / Discharge Current
• 50A Recommended
• 100A Maximum
• 100A Peak @ 15S
Environment Limit
• Charge Condition: 0°C to 55°C
• Discharge Condition: -20°C to 55°C
• Relative Humidity: 5% to 85% (Non Condensing)
• Enclosure Protection: IP20
Weight | 45 kg |
---|---|
Dimensions | 455 × 450 × 33 mm |
