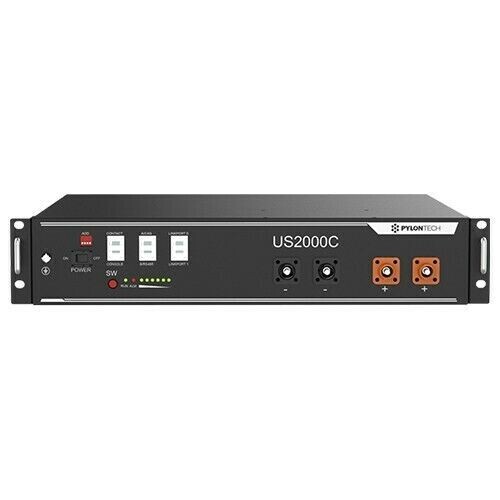

US2000C series is an ideal solution for residential storage applications, with standard 48V/50AH specification, up to 95% usable capacity and 4,500 cycle-life warranty.

Advantages

• Vertical industry integration ensures 6000 cycles with 80% DOD.
• Compact and fashionable design fits in your home environment.
• Deliver up to 5KW* with single module (2.4KWh) - * please note this value is inverter/charger dependant, typically the maximum achieved value is 1.2kW per battery.
• Modular design gives the end customers the power of choice of capacity.
• Compatible with large number of Hybrid inverters.
• Simple buckle fixing minimize the installation time and cost.
• Safety Cert.TÜV CE UN38.3.

Lithium-ion batteries require compatible inverters, please check the Product Compatibility
Voltronic Axpert are compatible with Pylontech provided the following guidance is used: Installation Manual Pylontech Voltronic Settings.

Technical Specifications
Nominal

• Nominal Voltage: 48V.
• Nominal Capacity (Wh): 2400.
• Usable Capacity (Wh): 2200.

Physical

• Dimension (mm): 440*410*89.
• Weight(Kg): 24.

Electrical

• Discharge Voltage(V): 45~54.
• Charge Voltage(V): 52.5~54.
• Charge/Discharge Current (A): 25 (Recommended); 50 (Max); 100 (Peak@15s).

Others

• Communication Port: RS232; RS485; CAN.
• Working Temperature/°C: 0~50.
• Single string quantity(pcs): 8.
• Shelf Temperature/°C: -20~60.
• Authentication Level: TÜV/CE/UN38.3.
• Design life: 10+ Years@25°C.
• Cycle Life: >4500, 25°C.
