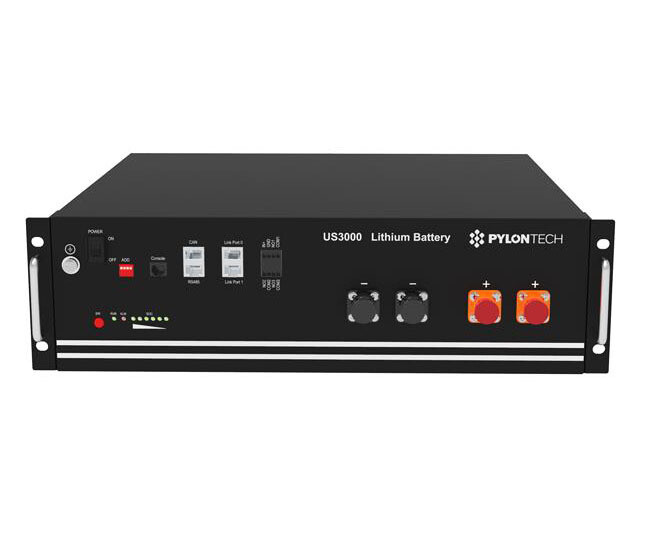

US3000 series is an ideal solution for residential storage applications, with standard 48V/74AH specification, up to 90% usable capacity and 4,5000 cycle-life warranty.

Advantages

• Vertical industry integration ensures more than 4500 cycles with 90% DoD or 6000 cycles with 80% DOD (please note most devices will set the DOD at 80%).
• Compact and fashionable design fits in your home environment.
• Deliver up to 5KW* with single module (3.5KWh) - * please note this value is inverter/charger dependant, typically the maximum achieved value is 1.8kW per battery.
• Modular design gives the end customers the power of choice of capacity.
• Compatible with large number of Hybrid inverters.
• Simple buckle fixing minimize the installation time and cost.
• Safety Cert.TÜV CE UN38.3.

Lithium-ion batteries require compatible inverters, please check the Product Compatibility
Voltronic Axpert are compatible with Pylontech provided the following guidance is used: Installation Manual Pylontech Voltronic Settings.

Technical Specifications
Nominal

• Nominal Voltage: 48V.
• Nominal Capacity (Wh): 3552.
• Usable Capacity (Wh): 3200.

Physical

• Dimension (mm): 440*410*132.
• Weight(Kg): 32.

Electrical

• Discharge Voltage(V): 45~53.5.
• Charge Voltage(V): 52.5~53.5.
• Charge/Discharge Current (A): 37 (Recommended); 74 (Max); 100 (Peak@15s).

Others

• Communication Port: RS232; RS485; CAN.
• Single string quantity(pcs): 12.
• Working Temperature/°C: 0~50.
• Shelf Temperature/°C: -20~60.
• Authentication Level: TÜV/CE/UN38.3.
• Design life: 10+ Years@25°C.
• Cycle Life: >4500, 25°C.
