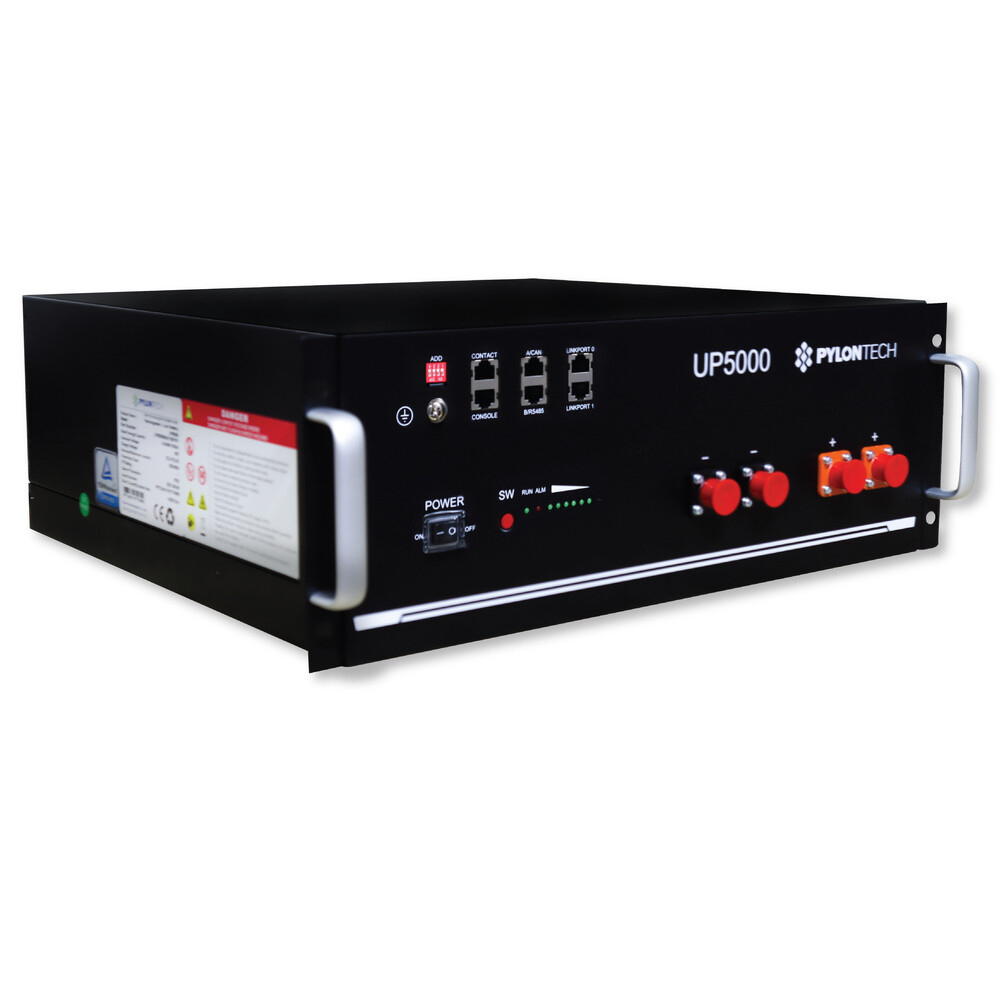

48V 4.8kW Lithium Ion Phosphate Battery- Pylontech UP5000 Rack Mounted
UP5000 series is an ideal solution for residential storage applications, with standard 48V/100AH specification, up to 95% usable capacity and 4,500 cycle-life warranty.
Modular design for ease of expansion
Higher usable capacity resulting in less battery modules installed
Usable capacity 4 560Wh
Parallel Capability of up to 16 units
Allows for large installation of up to 72.96kWh with no LV Hub
Intelligent BMS protecting battery cells
95% DoD with more usable capacity
RS485 and CAN compatible
Comes with a 5-year warranty non-extendable
Advantages
Vertical industry integration ensures more than 4500 cycles with 95% (please note most devices will set the DOD at 80%).
Compact and fashionable design fits in your home environment.
Deliver up to 5KW* with single module (4.8KWh) - * please note this value is inverter/charger dependant, typically the maximum achieved value is 2.4kW per battery.
Modular design gives the end customers the power of choice of capacity.
Compatible with large number of Hybrid inverters.
Simple buckle fixing minimize the installation time and cost.
Safety Cert.TÜV CE UN38.3.
Lithium-ion batteries require compatible inverters, please check the Product Compatibility Voltronic Axpert are compatible with Pylontech provided the following guidance is used: Installation Manual Pylontech Voltronic Settings.
Technical Specifications
Nominal
Nominal Voltage: 48V.
Nominal Capacity (Wh): 4800.
Usable Capacity (Wh): 4560.
Physical
Dimension (mm): 442*420*165.
Weight(Kg): 41.
Electrical
Discharge Voltage(V): 45~53.5.
Charge Voltage(V): 52.5~53.5.
Charge/Discharge Current (A): 50 (Recommended); 90 (Max); 200 (Peak@15s).
