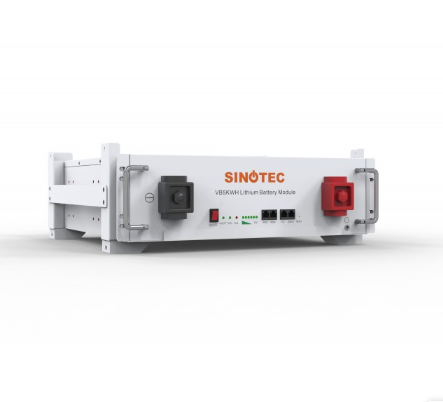

Sinotec 5.12kWh Lithium Battery (Rack Mount)

Sinotec 51.2V 100AH 5.1 Kwh Lithium Battery Rack Mount VB5KWH

Product Introduction:

-Up to 16 groups of parallel connections, flexible
capacity expansion

-Software for voltage, current, temperature,
convenient for users to query

-Compatible with mainstream inverters in the
market, providing more options

-Built-in BMS provides multiple protection
functions

Specifications:

Model : VB5KWH
Battery Type : LiFePO4
Nominal Battery Energy : 5.12kWh
Nominal Capacity : 100Ah
Nominal Voltage : 51.2V
Charging Cut-off voltage : 57.6V
Discharging End-off voltage : 40V
Recommended Charge / Discharge Current : 100A
Max. Power Charge / Discharge Current : 100A
Peak Power Charge / Discharge Current : 200A(5s)
Weight : 45kg
Max. Dimension[W*D*H] : 480*460*155.5mm
Charging Temp. Range : 0-50℃
Discharging Temp. Range : -20-60℃
Communication : CAN / RS485

Warranty : 10 Years
Warranty Document Supplied : Yes
Calendar Life : ≧5000 Cycles
Scalability : IP20
Pros : Can be used in both off-grid and hybrid setups,compact design
Compatible Inverters : Victron/SMA/Goodwe/Imeon/Solis/SAJ/Growatt/Luxpower/Voltronic/Deye etc.
Certification & Safety Standard : CE/UN38.3
