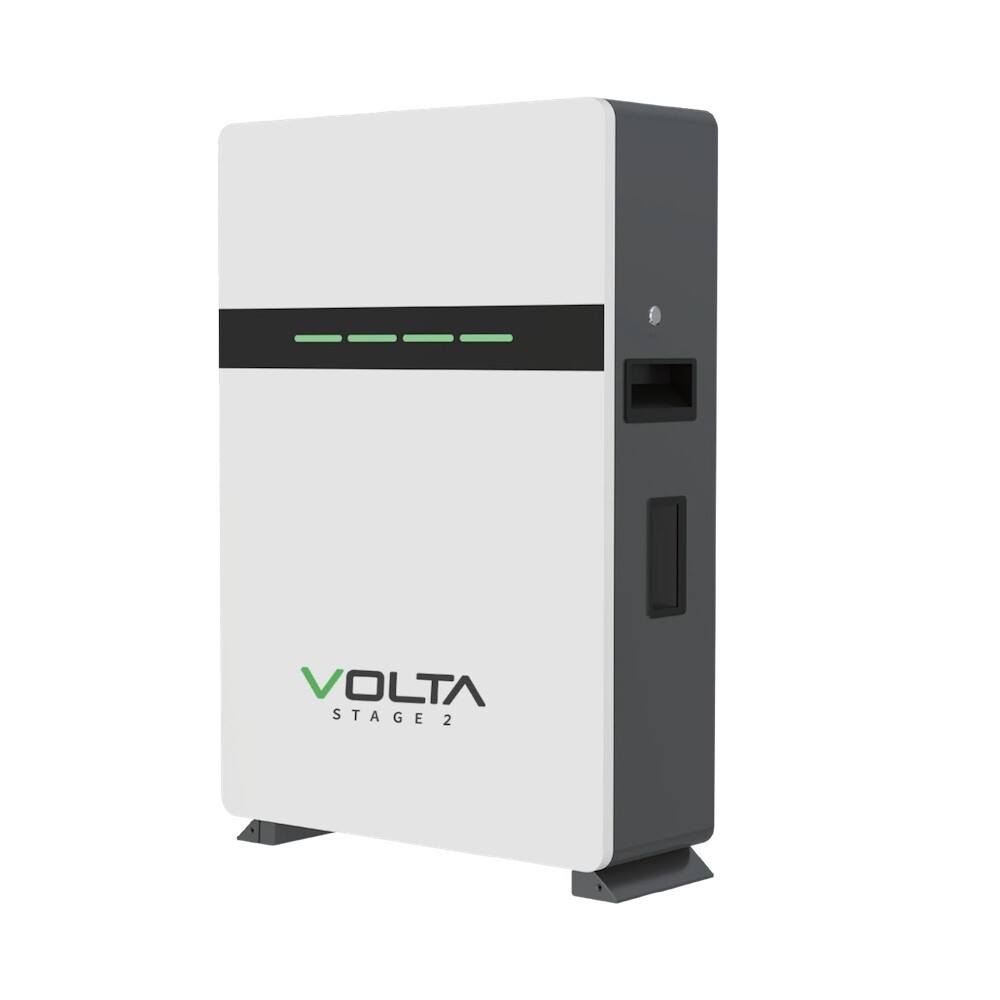

Volta (Stage 2) 7.68kWh Lithium Battery (Wall Mount or Rack Mount)

Battery BMS supports simultaneous communication and docking with multiple inverter brands.

Super Points: ONE Battery For Multiple Brand Inverters

Product advantages

Long cycle life
Using high-quality lithium iron phosphate batteries, the cycle life is more than 6000 times
at 80%DOD, and can be used for 10-15 years

High quality prismatic lithium iron phosphate battery
Higher capacity, higher current, longer life

Low internal resistance and high current
Low internal resistance of the battery, excellent continuous high current discharge performance

Intelligent BMS battery protection
Built-in intelligent BMS (battery management system), effectively avoiding overcharge,
overdischarge, overcurrent, short-circuit, balance and other problems

Communicated with multiple brands inverter same time
battery BMS supports simultaneous
communication and docking with multiple brands inverter

Good safety performance
Extreme safety test, no fire, no explosion, no leakage

Features and Functions

• Advanced BMS with current limiting function.
• CAN Bus, fully integrates and communicates with leading Inverter brands.
• Excellent high temperature performance.
• High Cycle Life and Service Life.
• High Energy Density and conversion efficiency.
• Complete with integrated Battery Management System.
• Compatible with most Inverters and chargers.
• Low self-discharge.
• Easy wall mount or shelf rack installation.
• Heavy duty side handles for easy handling and mounting on the wall.
• Built in protection for over-charge, over-discharge & over-temperature.

Specifications

Model: Volta (Stage 2)

General Data

• Warranty 10 Years for Cells, 5 Years for BMS

• Module Type: LFP

• Cyclelife: 6000 Cycles (80% Depth of Discharge)

• Battery Module Capacity: 5.12KWH

• Battery Module Voltage: 51.2VDC

• Battery Charge Voltage: 55.2~56VDC

• Battery Discharge Cut-Off Voltage: 44.8VDC

• Battery Module Capacity: 150AH

• Battery Cell Capacity: 320Wh

• Battery Cell Voltage: 3.2VDC

• Battery Cell Capacity: 150AH

• Battery Module Charge / Discharge Current: 150A (Max) 1C rating

• Battery Module Cell Quantity: 16 PCS

• Discharge Condition: -20°C to 55°C

• Charge Condition: 0°C to 55°C

• Storage Condition: -10°C to 35°C

• Enclosure Protection: IP20

• Battery Module Cell Quantity in Series: 16 PCS

• Parallel Configuration: 8 Modules Maximum

• Communication: CAN / RS485 / RS232

• Mounting: Wall Mount & Rack Mount

Environment Limit
• Charge Condition: 0°C to 55°C
• Discharge Condition: -20°C to 55°C
• Relative Humidity: 5% to 85% (Non Condensing)
• Enclosure Protection: IP20
