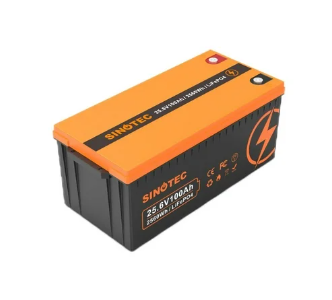

Sinotec LIFEPO4 Lithium Battery 25.6V 100Ah, 3000 charging cycles @ 0.5C 80%DOD, Can use up to 2 batteries in series with the built in BMS (Battery Management System) 2100Whr usable energy @ 80% Depth of Discharge.
Benefits of Lithium solar storage / power backup batteries.
Lithium Batteries have a longer life span than Lead Acid Battery
Lithium Batteries have deeper discharge cycles than Lead Acid Battery
Lithium Batteries stay above 25V at 90% discharge
Lithium batteries are lighter for the same capacity (about 33% of the weight of Lead Acid)
Specifications:
Normal capacity: 100Ah
Voltage: 25.6V
Energy: 2560Wh
Charge Voltage: 29.2V
Discharge cut-off voltage: 21.8V
Charge Method: CC/CV
Standard Charge current: 50A
Max. Charge Current: 100A
Max. Continuous Discharge Current: 100A
Cycle life:3000 times @80% Depth of Discharge
Internal Impedance: <50mOhm
Dimensions: L522 x W240 x H224mm
Weight: 26.6Kg
Working temp: 0 - 55deg C
Storage temp: -20degC to 60degC
BMS (Battery management system) included to extend the life-time of the battery
Increase capacity in series or increase voltage parallel
