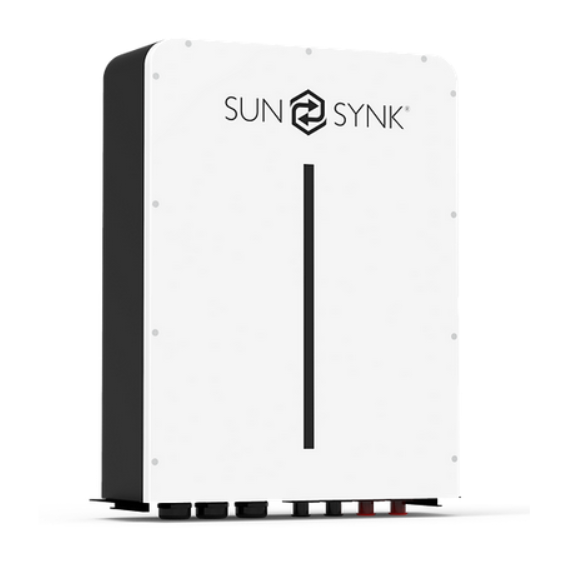

Sunsynk 5.3kWh 51.2V Battery G Series (Wall Mount or Rack Mount)
SUNSYNK-5.12
(LiFePO4)
The G-Series lithium-iron phosphate 5.3kWh battery is one of the new energy storage products developed and produced by SUNSYNK. It is especially suitable for application scenarios of high power, limited installation space, and long cycle life. It can be used to support reliable power for various types of equipment and systems.
The battery can be expected to remain serviceable for more than 10 years and this takes into consideration that it is charged and discharged once per day at room temperature (25 C).
Lithium Ion Phosphate batteries provide excellent thermal stability and storage. The module also incorporates a self-monitoring function for the detection of any abnormalities in power storage.
Sunsynk inverter and Sunsynk battery pairing : 5-year extended warranty on inverter.
Equipment warranty registration needs to take place within 7 (seven) days of commissioning of the project, failure to register the warranty may result in the warranty being made void.
This battery module consists of Lithium Ion phosphate rechargeable batteries with 5.3kWh capacity rated at 51.2V 100Ah with a built-in battery management system.
Sunsynk 5.3kwh Lithium-ion battery
Sunsynk has produced a perfect storage solution. The module consists of lithium-iron phosphate rechargeable batteries with 5.3kWh capacity rated at 51.2V 103Ah with a built-in battery management system. The battery can be expected to remain serviceable for more than 10 years and this takes into consideration that it is charged and discharged once per day at room temperature (25 C).
Lithium Ferro phosphate batteries provide excellent thermal stability and storage. The module also incorporates a self-monitoring function for the detection of any abnormalities in power storage.
Cell Type - Lithium Ferro Phosphate (LifePO4 or LFP)
Nominal Operating Voltage - 51.2V
Nominal Capacity - 103Ah / 5.3kWh
Depth of Discharge (DoD) - 90%
Nominal Energy - 5.3kWh
Usable Energy - 5.1kWh
Packing - 1P16S
IP Rating - IP40
Minimum Operating Voltage - 44.8V
Maximum Operating Voltage - 57.6V
Standard Charging Current (Recommended) - 50A
Continuous Charging Current - 100A
Standard Discharging Current - 100A
Continuous Discharging Current - 100A (1C, 25 C 2 C)
Pulse Discharging Current - 150A (2C, 30S, 25 C 2 C SOC 40%)
Standard Charging Method - 0.5C CC to 57.6V, CV at 57.6V till current is 0.05C
