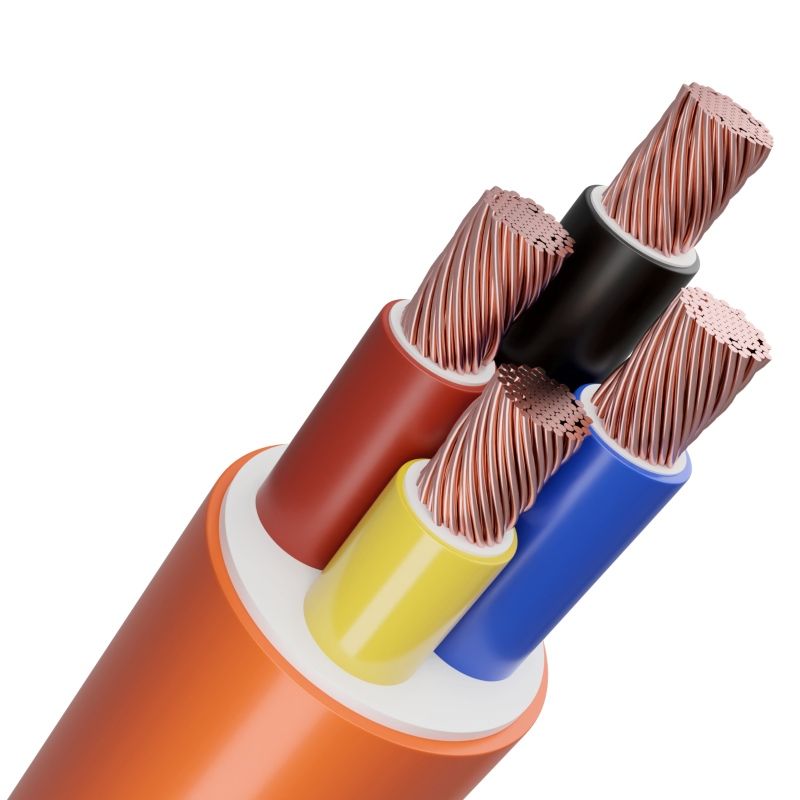

High conductivity bunched flexible copper conductors, insulated and colour coded with general purpose flexible grade PVC. Insulated cores are twisted and bedded with PVC to give the cable a round finish. Final protection is with a tightly bonded, water, oil and abrasion resistant PVC/rubber blend nitrile sheath.
Cable Size | Stranding | mV Drop Amps/m | Cubicle Wiring Amp Ratings | Nominal Dia | Mass | ||
mm² | No x Dia | 1 ph 220V | 3 ph 380V | 1 ph 220V | 3 ph 380V | mm | kg/100m |
1.5 | 28 x 0.26 | 29 | 25 | 16 | 15 | 10.9 | 17.38 |
2.5 | 44 x 0.26 | 18 | 15 | 23 | 20 | 12 | 22.79 |
4 | 49 x 0.31 | 11 | 9.5 | 30 | 27 | 14.7 | 34.8 |
6 | 74 x 0.31 | 7.3 | 6.4 | 38 | 34 | 16.1 | 45.28 |
10 | 126 x 0.31 | 4.4 | 3.8 | 52 | 46 | 19.1 | 69.8 |
