Use as timer and differential control on 220V pumped solar system

• Clear display of water temperature, time, day, heating mode and malfunction conditions on solar system and geyser.
• Auto or manual heating.
• Easy temperature setting to your requirements (30 – 65°C) factory default is 55°C.
• Four different temperature settings.
• Daily programmable timer with four time settings.
• Error conditions alert by warning code E2 to E5 and E7 to E9.
• Electronic thermostat with mechanical thermal cut-out at 90°C.
• Please note the cut-out temperature for systems expected to reach temperatures about this temperature.
• Differential controller 220V pumped solar system.

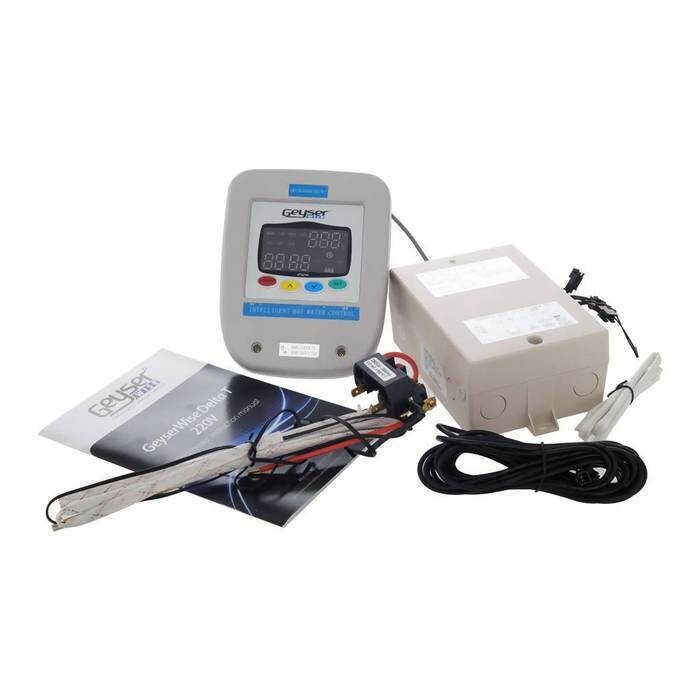

What’s in the box?

• Control box
• Display unit
• Water geyser sensor
• Collector temperature and extension cable

Additional Specifications

• Operating voltage 230VAC / 50HZ.
• Main relay contact rating 20AMP (Max 4KW).
• Secondary relays pump 5Amp.
• Operating voltage range 160V – 250V AC.
• Temperature display range 0 – 200°C (“-5” when below -5°C “EA” ).
• High temperature warning above 85°C.
• Temperature setting ranges 30 – 65°C (heating water electrically).
• Heat failure – when increase at a rate of less than 4°C per hour.
• Electronic thermostat with mechanical thermal cutout at 90°C.
• Dry heat detection – empty cylinder.
• Temperature tolerance ± 2%.
• Temperature differential setting 1°C.
• Switching differential 6°C.
• 2nd temperature probe for solar.
• Solar differential setting range 7°C – 15°C.
• Temperature probe failure detection for both collector and tank.
• Temperature probe range for geyser is -30 to + 130°C.
• Temperature probe range for collector is -30 to + 260°C.
• Isolate L when in off state.
• Collector antifreeze protection setting range 0 – 10°C.
