Use as timer and differential control on pumped solar system as timer and on a thermosyhon solar system
Clear display of water temperature, time, day, heating mode and malfunction conditions on solar system and geyser.
Auto or manual heating.
Easy temperature setting to your requirements (30 – 65°C) factory default is 55°C.
Four different temperature settings.
Daily programmable timer with four time settings.
Error conditions alert by warning code E1 to E7.
Electronic thermostat with mechanical thermal cut-out at 90°C. Please note the cut-out temperature for solar systems expected to reach temperatures above this temperature.
Use as timer and differential control on pumped solar system
Clear display of water temperature, time, day, heating mode and malfunction conditions on solar system and geyser.
Auto or manual heating.
Easy temperature setting to your requirements (30 – 65°C) factory default is 55°C.
Four different temperature settings.
Daily programmable timer with four time settings.
Error conditions alert by warning code E1 to E9.
Electronic thermostat with mechanical thermal cut-out at 90°C. Please note the cut-out temperature for systems expected to reach temperatures above this temperature.
Differential controller 12V and 220V systems.

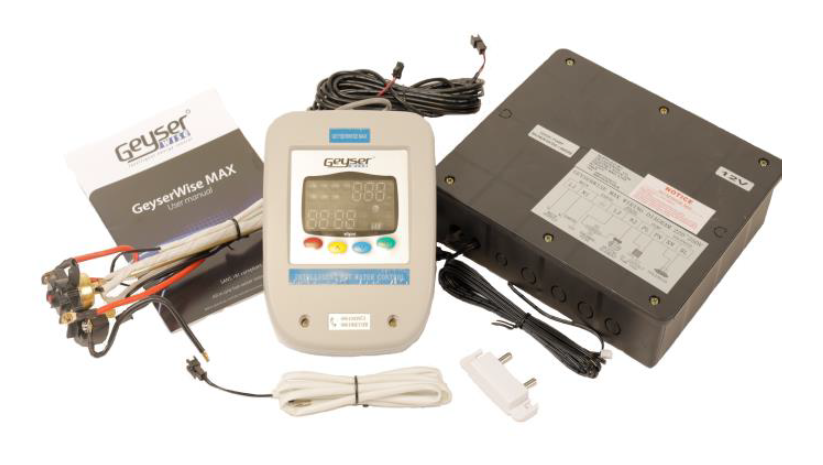

What’s included in the box?
Control box
Display unit
Water geyser sensor
Collector temperature sensor and extension
Water leak detector and extension
12V link cable
Screws
Alarm cable
Additional Specifications
Operating voltage 230VAC / 50HZ.
Main Relay contact rating 30AMP (Max 4KW).
Secondary relays pump and solenoid 5Amp.
Operating voltage range 160V – 250V AC.
Earth leakage protection at 25MA action time = 0,1 second.
Temperature display range 0 – 99°C (“-5” when below -5°C “EA” when above 99°C).
High temperature warning above 84°C.
Temperature setting ranges 30 – 65°C (heating water electrically).
Heat failure – when increase at a rate of less than 4°C per hour.
Electronic thermostat with mechanical thermal cut-out at 90°C.
Dry heat detection – empty cylinder.
Temperature tolerance ± 2%.
Temperature differential setting 1°C.
Switching differential 6°C.
2nd temperature probe for solar.
Solar differential 7°C.
Temperature probe failure detection for both collector and tank.
Temperature probe range for geyser is -30 to + 130°C.
Temperature probe range for collector is -30 to + 260°C.
