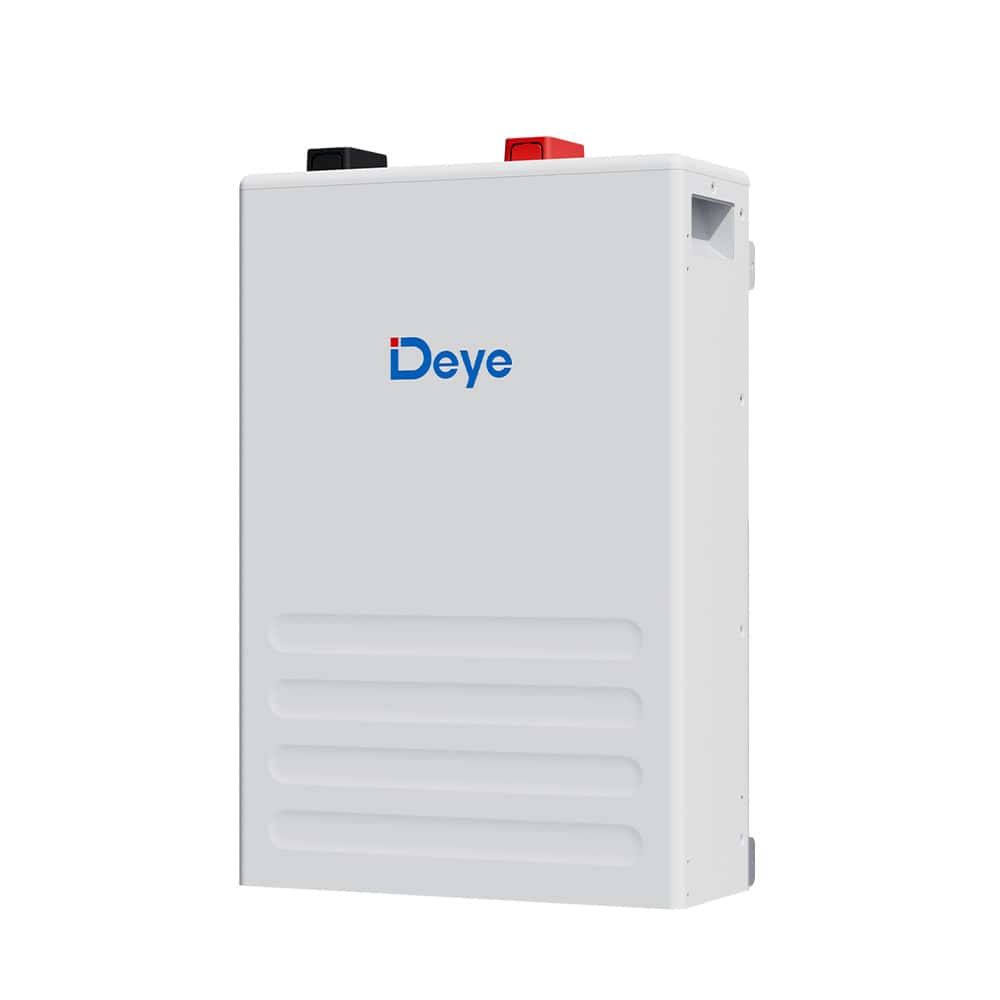

Deye 16kWh 51.2V 314Ah Lithium Ion Low Voltage Battery
The Deye 16kWh 51.2V 314Ah Lithium-Ion Battery delivers reliable, high-capacity energy storage for residential and commercial applications. Built with advanced LiFePO₄ technology, it offers over 6000 charge cycles and a powerful 230A continuous discharge current for dependable performance. The integrated Battery Management System (BMS) with active fuse protection ensures optimal safety and efficiency, while Bluetooth, CAN2.0, and RS485 connectivity make system monitoring effortless. With flexible wall, floor, or stack mounting options and the ability to connect up to 32 units in parallel, this battery is ideal for scalable energy solutions.
Product Features:
Comprehensive Protection - Advanced BMS with active fuse
Superior Performance - Support Max. 1C charge & 1.2C discharge (SE-F5 & F5 Plus), GaN MOSFETs: 50% loss reduction, high-temp resistance
Optimized Energy Density - Integrated PACK: reduced line loss, enhanced energy density
Flexible Expansion - Max. 32 units in parallel
Easy Maintenance - Auto-networking, Local monitoring mode for battery, remote monitoring mode for ESS
Reliable Durability - Operates reliably in -20℃ to 55℃, natural cooling
Specifications:
Main Parameters
Battery Chemistry: LiFePO4
Capacity: 314 Ah
Scalability: Max. 32 pcs in parallel
Nominal Voltage: 51.2 V
Operating Voltage: 44.8 V ~ 57.6 V
Nominal Energy: 16 kWh
Charge Current:
Max. Continuous: 160 A
Peak: 280 A ( 10 sec )
Discharge Current:
Max. Continuous: 230 A
Peak: 280 A ( 10 sec )
Other Parameters
Recommend Depth of Discharge: 90% DoD
Dimension ( W × H × D ) (Without hanging board): 400 × 708 × 233 mm
Weight Approximate: 109 kg
LED Indicator: LED ( SOC, working, protecting ) & Buzzer
