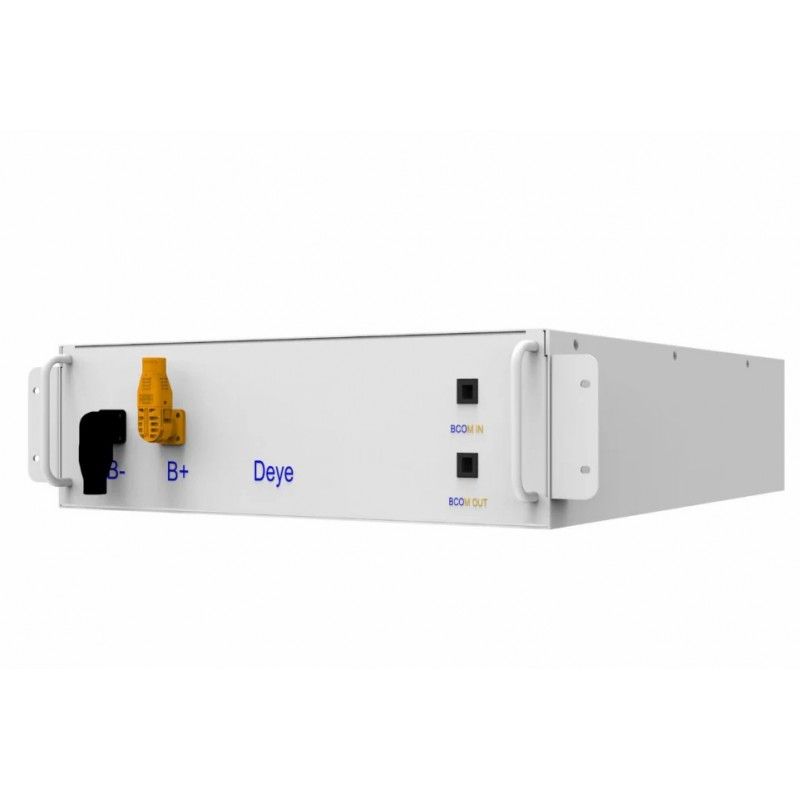

Deye BOS-G Pro 5.12kWh High Voltage Battery Module
The Deye BOS-G Pro 5.12kWh High Voltage Battery Module is a rack-mounted LiFePO4 battery module designed for scalable commercial and industrial energy storage systems. Built for the Deye BOS-G Pro high-voltage battery platform, this module provides reliable energy storage for hybrid solar systems, commercial backup power, and larger ESS installations.Each BOS-G Pro battery module provides 5.12kWh of rated energy with a 51.2V nominal voltage and 100Ah capacity. Multiple modules are installed in series with a compatible Deye high-voltage battery control box to create larger system capacities ranging from 25.6kWh to 81.92kWh, depending on configuration.
Key Features
5.12kWh LiFePO4 battery module
High-voltage rack-mounted battery design
51.2V nominal module voltage
100Ah rated capacity
Designed for Deye BOS-G Pro battery systems
Scalable system configurations from 5 to 16 modules
Supports 25.6kWh, 40.96kWh, 61.44kWh and 81.92kWh system sizes
Intelligent battery management system protection
Rack-mounted 19-inch installation format
Suitable for commercial and industrial energy storage
Safe and Reliable LiFePO4 Battery Technology
The BOS-G Pro module uses lithium iron phosphate battery chemistry, known for stable performance, long cycle life and strong safety characteristics. The battery system includes protection against over-discharge, over-charge, over-current and abnormal temperature conditions when used with the correct Deye BOS-G Pro system components.
Scalable High Voltage Battery Storage
The Deye BOS-G Pro platform is designed for flexible expansion. A minimum of 5 battery modules is required to build a BOS-G25-Pro system, while larger configurations can use 8, 12 or 16 modules depending on the required energy storage capacity and inverter design.
Commercial Energy Storage Applications
Commercial solar systems
Industrial energy storage
Hybrid solar installations
Battery backup systems
Peak shaving applications
Small-scale C&I ESS projects
Commercial inverter battery banks
Solar self-consumption systems
System Configuration Options
BOS-G25-Pro: 5 modules, 25.6kWh rated system energy
BOS-G40-Pro: 8 modules, 40.96kWh rated system energy
BOS-G60-Pro: 12 modules, 61.44kWh rated system energy
BOS-G80-Pro: 16 modules, 81.92kWh rated system energy
