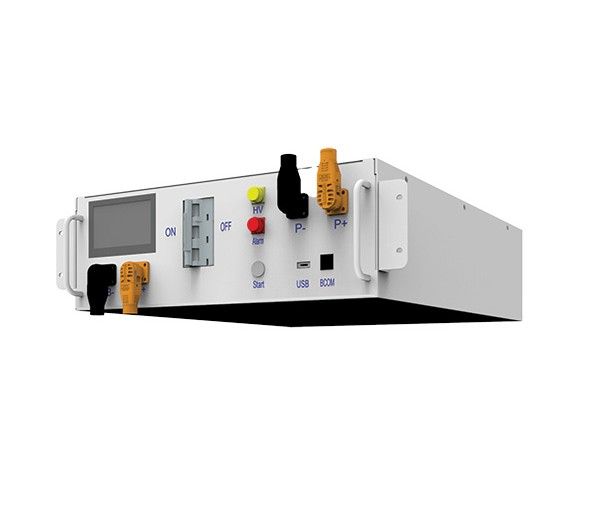

Deye Cluster Control box BMU for BOS-G Battery is compatible with the Deye BOS-G 5.12kwh HV Lithium-Ion Battery. The BMU is specifically designed for the Deye HV battery and ensures its safe and efficient operation.
Key Functions:
Model: HVB750V/100A-EU.
Communicates with other system components.
Battery Monitoring – tracks battery parameters.
Safety Protection: Implements safety measures like overcharging.
Cell Balancing: Equalizes the charge level of individual battery cells.
Temperature Management: Regulates battery temperature within safe operating limits.
Deye Cluster Control Box BMU for BOS-G Battery. The Deye Cluster Control Box, also known as a Battery Management Unit (BMU), is a crucial component in a solar energy system that uses Deye BOS-G batteries. Its primary function is to monitor and manage the battery’s performance to ensure optimal efficiency, safety, and longevity.
Here are some of the benefits of using the Deye Cluster Control Box BMU:
Safe and reliable operation of the battery.
Extended lifespan of the battery.
Improved performance of the battery.
Reduced risk of fire or explosion.
Peace of mind for the user.
TECHNICAL DATA:
Operating Voltage: 120-750Vdc.
Nominal Charge/Discharge Current: 100A.
Max. Charge/Discharge Current: 125A.
DC Input Rating: 12±2% V/4.15A.
Operating Temperature Range -20~55ºC
Ingress Protection: IP20.
Dimension (W/D/H): 440*565*150mm.
Weight: 15.5kg.
Considering Deye BOS-G 5.12kwh HV Lithium-Ion Battery? I recommend adding the Deye Cluster Control box BMU. It is a valuable investment that will help to protect your battery and ensure its long-term performance.
