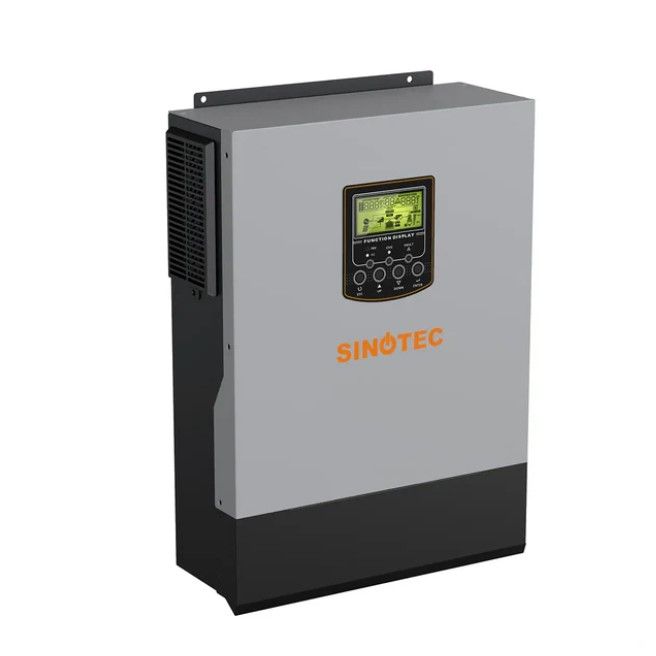

This is a multifunction inverter/charger, combining functions of inverter, solar charger and battery charger to
offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable
and easy accessible button operation such as battery charging current, AC/solar charger priority, and
acceptable input voltage based on different applications.
Pure sine wave inverter
Built in BMS communication port
Built in anti-dust kit
Inverter running without battery
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Rated power: 3000VA/3000W
INPUT
Selectable Voltage Range: 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range : 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) : 230VAC ± 5%
Surge Power: 6000VA
Efficiency (Peak): 93%
Transfer Time : 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform: Pure sine wave
BATTERY
Battery Voltage 24 VDC
Floating Charge Voltage 27 VDC
Overcharge Protection 32 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type MPPT
Maximum PV Array Open Circuit Voltage 450 VDC
Maximum PV Array Power 3000W
MPP Range @ Operating Voltage 60 ~ 400 VDC
Maximum Solar Charge Current 100 A
Maximum AC Charge Current 80A
Maximum Charge Current 100A
Communication Interface RS232/RS485, optional WiFi ENVIRONMENT
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature -10°C to 50°C
