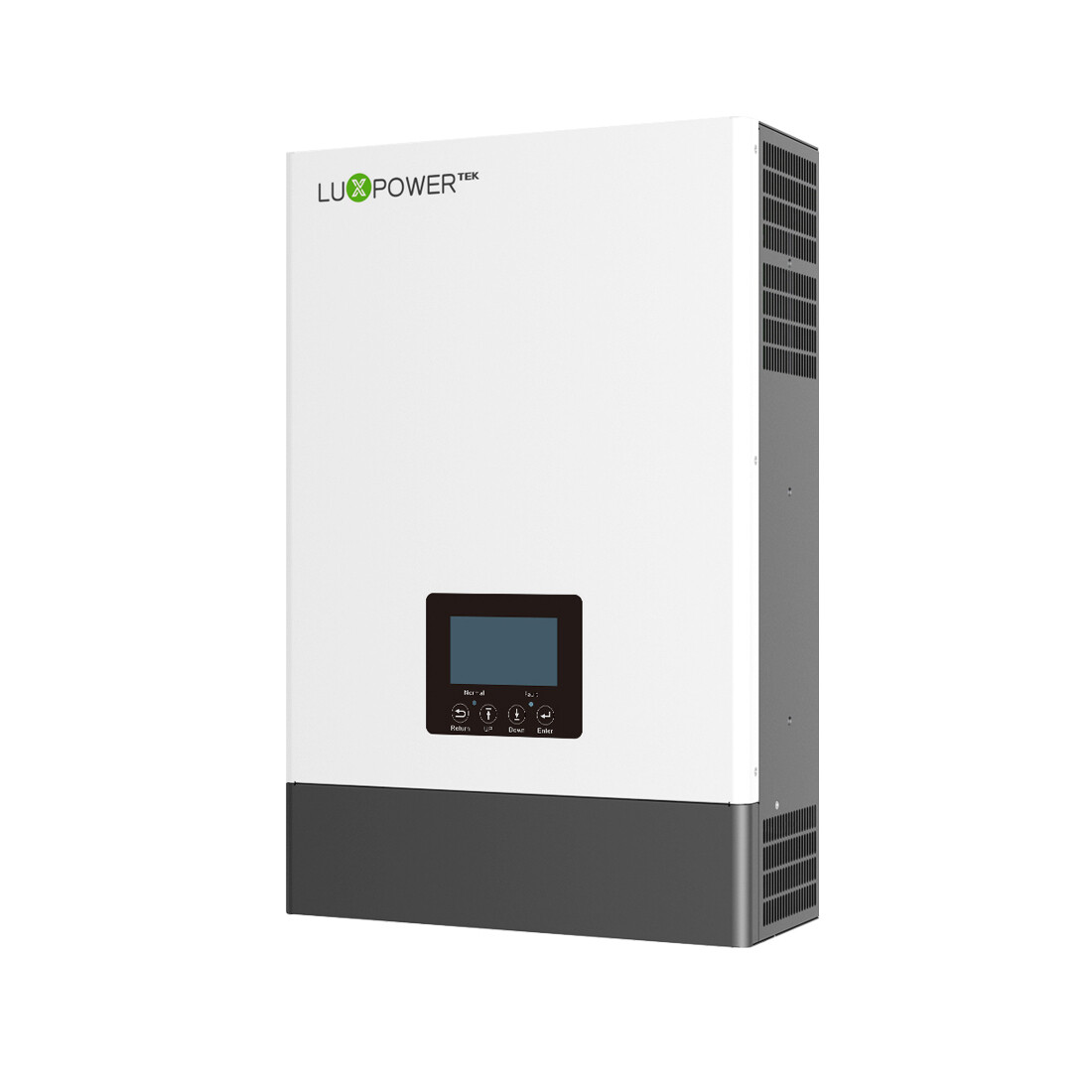

Luxpower 5KW Off-grid Inverter - SNA 5000

Description:

General

• Model: SNA 5000 WPV
• Battery voltage: 48VDC.
• Dimension: 550mm x 380mm x 200mm
• Weight: 15kg

Inverter Output

• Waveform: Pure Sine-Wave.
• Rated Power: 5000VA/5000W.
• Parallel Capability: Yes, 9 units.
• AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz.
• Surge Power: 10000VA.
• Efficiency (Peak): 93%.
• Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).

Solar Charger

• Maximum PV Array Power: 6000W.
• 2 MPPT Controllers
• MPPT Range @ Operating Voltage: 100VDC ~385 VDC.
• Maximum PV Array Open Circuit Voltage: 480VDC.
• Maximum Efficiency: 98%.
• Maximum Solar Charge Current: 100A.

AC Charger

• Charge Current: 60A.
• AC Input Voltage: 230 VAC.
• Selectable Voltage Range: 110-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
• Frequency Range: 50Hz/60Hz (Auto sensing)

Build in BMS(Battery management System)

• BMS Compatible with
• Pylon
• Dyness
• BYD
• Shoto
• Revov
• UZ Energy

Wifi Remote Monitoring

Flexible Working Modes with settable charge an dload power supply priority

Support Solar and AC take the load jointly
