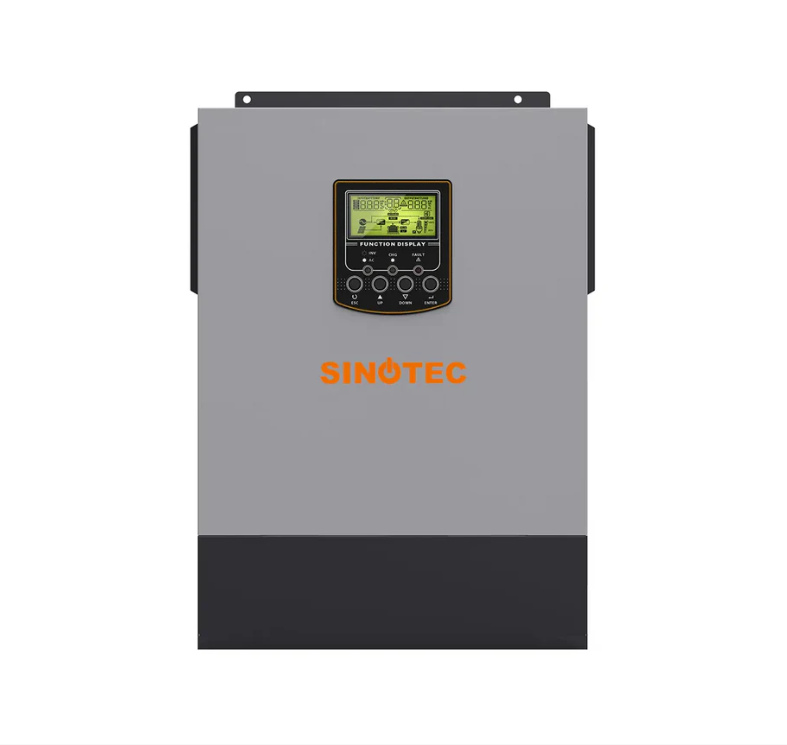

This is a multifunction inverter/charger, combining functions of inverter, solar charger and battery charger to
offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable
and easy accessible button operation such as battery charging current, AC/solar charger priority, and
acceptable input voltage based on different applications.
Pure sine wave inverter
Built in BMS communication port
Built in anti-dust kit
Inverter running without battery
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Product Features:
What‘s Off-Grid？
As the name suggests, an off-grid solar system is a power supply system that can operate independently of the grid. An off-grid solar system comprises solar panels, batteries, off-grid inverters, and loads. Typically, off-grid inverters also support the connection to the grid or generator to supplement power if you want.
Specifications:
Rated Power - 5000VA/5000W
INPUT
Voltage - 230 VAC
Selectable Voltage Range - 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Frequency Range - 50Hz/60Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) - 230VAC ± 5%
Surge Power - 10000VA
Efficiency (Peak) - 93%
Transfer Time - 10ms (For Personal Computers); 20 ms (For Home Appliances)
