Description:

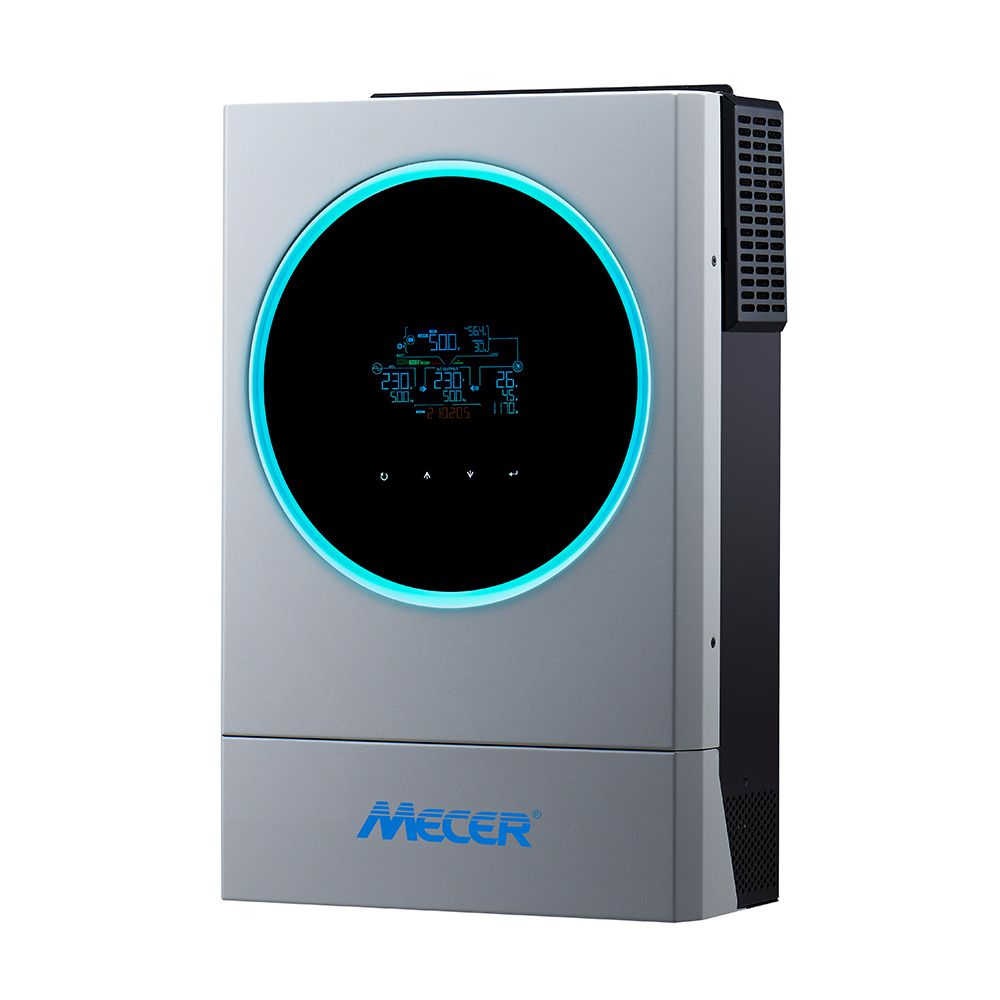

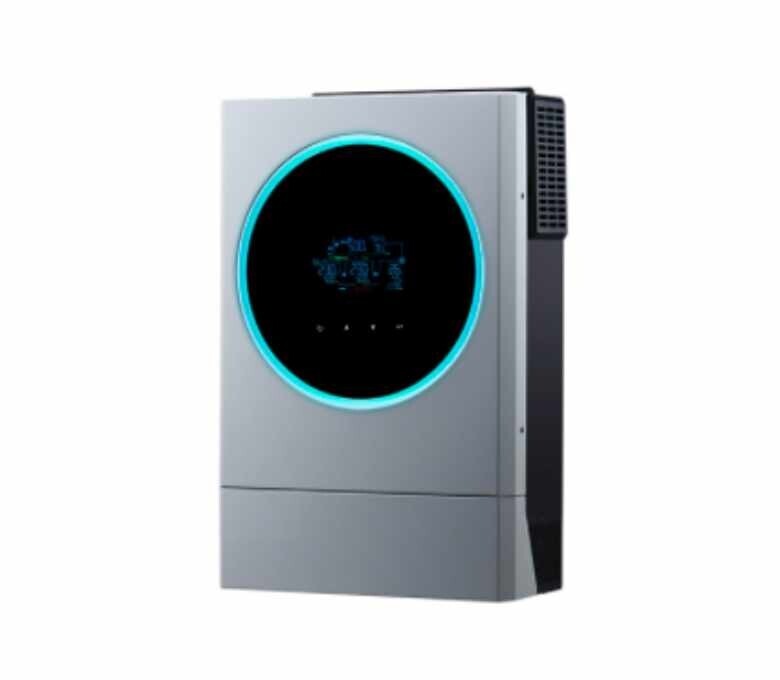

The Mecer5.6-5M4 is the latest in the range of the Mecer products.

The Mecer5.6-5M4 inverter comes with a large colored LCD display and built in Wi-Fi for online mobile monitoring. The RGB status light indicates the working status of the inverter while being aesthetically pleasing.

• Pure sine wave MPPT solar inverter
• Customizable status LED ring with RGB lights
• Touchable button with 4.3" colored LCD
• Wide DC input range
• Supports USB On-the-Go function
• Data log events stored in the inverter
• Built-in Wi-Fi for mobile monitoring (App is available)
• Reserved communication port for BMS
• Parallel operation with up to 9 units

Specifications:

Weight: 15.08 kg

Rated Power: 5,600 W

Min PPT Voltage: 120 V

Max PPT Voltage: 450 V

DC Startup Voltage: 120 V

DC Shutdown Voltage: 120 V

Max Input Voltage: 450 V

Max DC Power: 6,000 W

Max AC Power (5 Minutes): 6,160 W

Surge AC Power (1 Second): 11,200 W

Max DC Current: 18 A

Max DC Inputs: 1

Has DC Fuses: 0

Connector: Screw Terminal

Included Connectors: 1

Euro Efficiency: 93 %

Transformer: None

MPPT Quantity : 1

Has Integrated DC Switch: No

Warranty: 3 years
