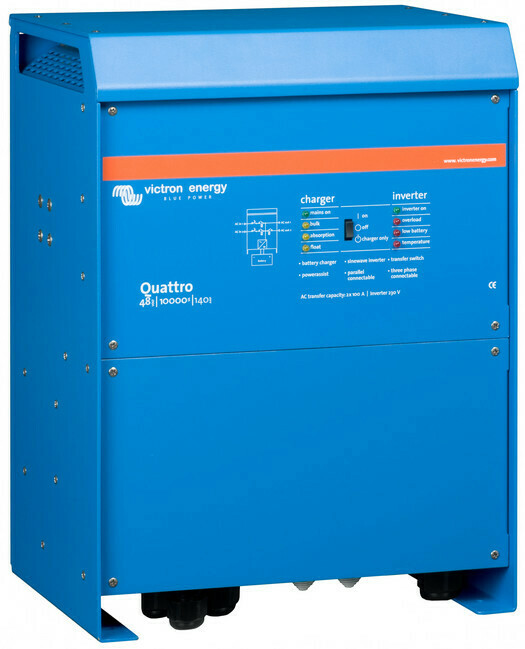

48V 10000VA-140A Victron Quattro VE.Bus Full Sine Wave Inverter/Charger
Two AC inputs with integrated transfer switch
The Quattro can be connected to two independent AC sources, for example the public grid and a generator, or
two generators. The Quattro will automatically connect to the active source. Two AC Outputs
The main output has no-break functionality. The Quattro takes over the supply to the connected loads in the
event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than
20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not
discharge the battery, like a water heater for example, can be connected to this output. Virtually unlimited power thanks to parallel operation
Up to 6 Quattro units can operate in parallel. Six units 48/10000/140, for example, will provide 54kW / 60kVA
output power and 840 Amps charging capacity. Three phase capability
Three units can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel
connected to provide 162kW / 180kVA inverter power and more than 2500A charging capacity.
