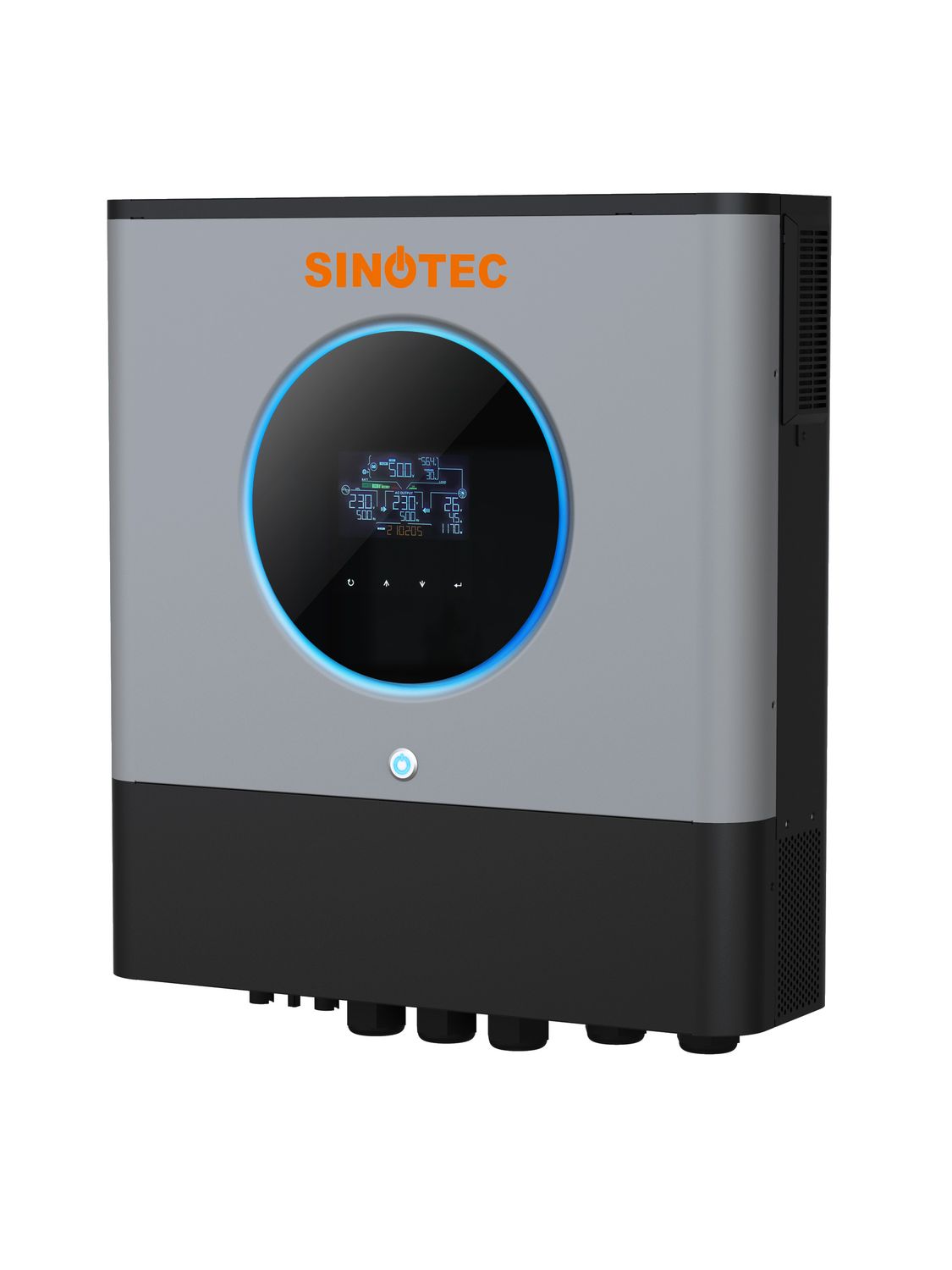

Unlock the potential of uninterrupted power with the Sinotec 8KW Off-Grid Inverter, a multi-function powerhouse designed to revolutionize your energy solutions. This innovative inverter seamlessly integrates the functions of an inverter, solar charger, and battery charger, all within a single package. Whether you’re seeking reliable backup power for your home, office, or off-grid setup, the Sinotec 8KW Inverter delivers unparalleled performance and convenience.
At the heart of this versatile inverter is its pure sine wave technology, ensuring clean and stable power output for your sensitive electronics and appliances. The customizable status LED ring with RGB lights adds a touch of personalization, allowing you to monitor the inverter’s status at a glance.
Navigating and configuring the Sinotec 8KW Inverter is effortless, thanks to its intuitive 5″ colored LCD touchable button interface. From adjusting battery charging currents to setting AC or solar charging priorities, the comprehensive LCD display puts control at your fingertips. Additionally, the built-in Wi-Fi capability enables mobile monitoring via an app, keeping you informed about your system’s performance anytime, anywhere.
Versatility meets efficiency with the Sinotec 8KW Inverter, supporting USB On-the-Go function for added convenience. The inverter is equipped with a built-in anti-dusk kit, ensuring durability and reliability even in challenging environmental conditions.
Connectivity is key in modern energy systems, and the Sinotec 8KW Inverter offers a range of communication interfaces, including USB, RS232, RS485, and Wi-Fi. This allows seamless integration with Battery Management Systems (BMS) for advanced monitoring and control.
Technical Specifications:
Rated Power: 8000VA/8000W
Parallel Capability: Yes, up to 6 units
INPUT
Voltage: 230V
Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Frequency Range: 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode): 230VAC ± 5%
Surge Power: 16000VA
Efficiency (Peak): 93%
Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances)
Waveform: Pure sine wave
DC Voltage: 12 VDC ± 5%, 100W
BATTERY
Battery Voltage: 48 VDC
Floating Charge Voltage: 54VDC
Overcharge Protection: 66 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power: 8000W (4000W x 2)
MPPT Range @ Operating Voltage: 90 ~ 450 VDC
Solar Charger Type: MPPT
Maximum PV Array Open Circuit Voltage: 500 VDC
Maximum PV Input Current: 27A x 2 (MAX 40A)
Maximum Solar Charge Current: 150 A
Maximum AC Charge Current: 120A
Maximum Charge Current: 150A
Communication Interface: USB/RS232/RS485/WiFi/Dry-contact
Operation Environment
Humidity: 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature: -10°C to 50°C
Storage Temperature: -15°C to 60°C
Standard Compliance: Safety CE
The Sinotec 8KW Off-Grid Inverter is designed for optimal performance in a wide range of environments, with safety and reliability at its core. Ensure uninterrupted power for your essential needs with this advanced and feature-rich energy solution.
