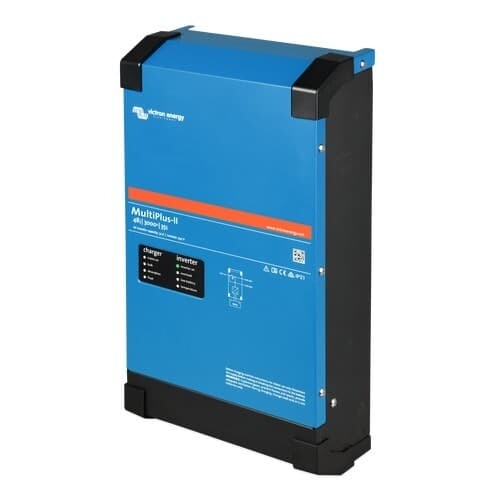

48V 3000VA-35A Victron MultiPlus II VE.Bus Full Sine Wave Inverter/Charger
A MultiPlus, plus ESS (Energy Storage System) functionality
The MultiPlus-II is a multifunctional inverter/charger with all the features of the MultiPlus, plus an external
current sensor option which extends the PowerControl and PowerAssist function to 50A resp. 100A.
Solar energy: AC power available even during a grid failure
The MultiPlus-II can be used in off grid as well as grid connected PV and other alternative energy systems. It is
compatible with both solar charger controllers and grid-tie inverters.
PowerControl and PowerAssist - Boosting the capacity of the grid or a generator
Two AC Outputs
The main output has no break functionality. The MultiPlus-II takes over the supply to the connected loads in the event of
a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that
computers and other electronic equipment will continue to operate without disruption.
The second output is live only when AC is available on the input of the MultiPlus-II. Loads that should not discharge the battery, like a water heater for example, can be connected to this output.
Virtually unlimited power thanks to parallel and three phase operation
On-site system configuring, monitoring and control
Settings can be changed in a matter of minutes with VEConfigure software (computer or laptop and MK3-USB interface
needed).
Several monitoring and control options are available: Color Control GX, Venus GX, Octo GX, CANvu GX, laptop, computer,
Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, Digital Multi Control Panel.
Remote configuring and monitoring
Install a Color Control GX or other GX product to connect to the internet.
