Equipped with MPPT solar charge controller to maximize and regulate DC power from the solar array for the charging the battery bank.Transformer-less design provides reliable power conversion in compact size and with high efficiency. With aluminum housing, Integrated interface system, It’s light and handy, making installation easier. It’s the ideal inverters for small PV plants, or individually for small houses, both indoors and outdoors.

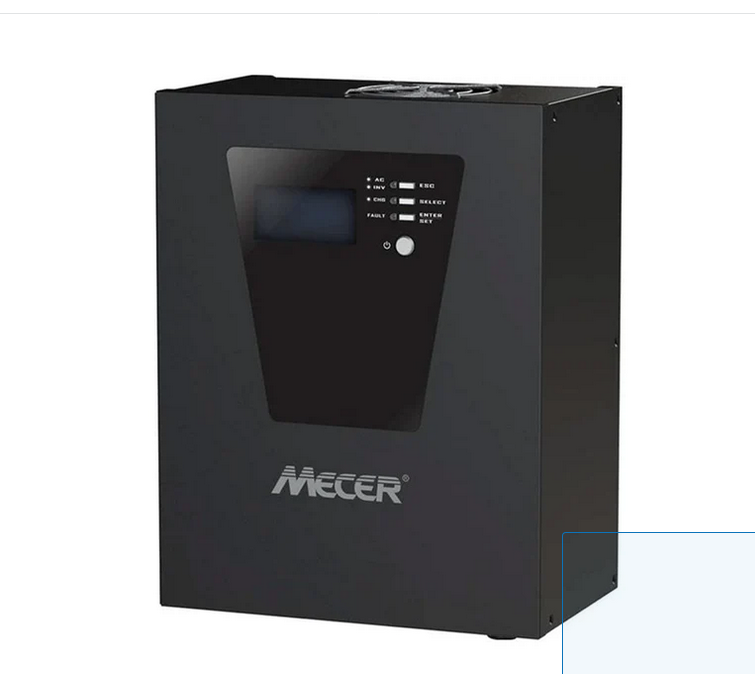

Mecer 1200VA / 1000W 12V Inverter With MPPT Solar Charger, Lithium And Lead Acid Battery Controller - IVR-1200MPPT
External Batteries Required
Features
Simulated sine wave inverter
Wide input voltage range
Overload and short circuit protection
LCD display for comprehensive information
MPPT
Specifications:
Model: IVR-1200MPPT
Capacity: 1200VA / 1000W
Power Factor: 0.83
Input:
Voltage 220-240 VAC
Voltage Range 90-280 VAC
Nominal Operating Frequency 50/60Hz
Maximum Input Current 10A
Output:
Nominal Output Voltage 220-240 VAC
Voltage Regulation (Batt. Mode) +/-10%
Output Frequency Range 50/60Hz
Nominal Output Current 5.2A
Inrush Current 10A
Maximum Output Fault Current 6.9A
Transfer Time 20 ms typical
Waveform Simulated Sine Wave
Battery:
Battery Voltage 12 VDC
Maximum Battery Discharging Current 100A
Floating Charge Voltage 13.7 VDC +-0.5 VDC
CV Charging Voltage
Lead Acid Battery 14.3 VDC +-0.5 VDC
Lithium Battery 14.6 VDC +-0.5 VDC
Cut Off Voltage 10.5 VDC +-0.5 VDC
Maximum AC Charging Current 10 A or 25 A
Solar Charger:
Solar Charger Type MPPT
Maximum PV Array Open Circuit Voltage 100 VDC
MPP Range @ Operating Voltage 15 ~ 80 VDC
Max. PV array Input Power 825W
Max. PV array Power to support 660W
Maximum Solar Charging Current 55 A
Maximum Charging Current (Utility +SCC) 55 A
Physical:
Dimension (DxWxH) mm 272 x 212 x 127
Net Weight (kgs) 4.5
Protective Class I
Ingress Protection Rating IP20
Environment:
Humidity 0 ~ 90% RH (No condensing)
Operating Temperature 0 ~ 55degC
Altitude 0 ~ 1000 m
What's in the box
1 x Mecer 1200VA, 12V Inverter With MPPT Solar Charger, Lithium And Lead Acid Battery Controller - IVR-1200MPPT
