Inverter/Charger60A 24V 3.0kVA/2.4kW Growcol Solar Off-Grid VM3000: 40A MPPT Full Sine Wave

Store/Inverters/Battery Inverters/Inverters with Built in Chargers/Growcol Inverters

Product Details

Description

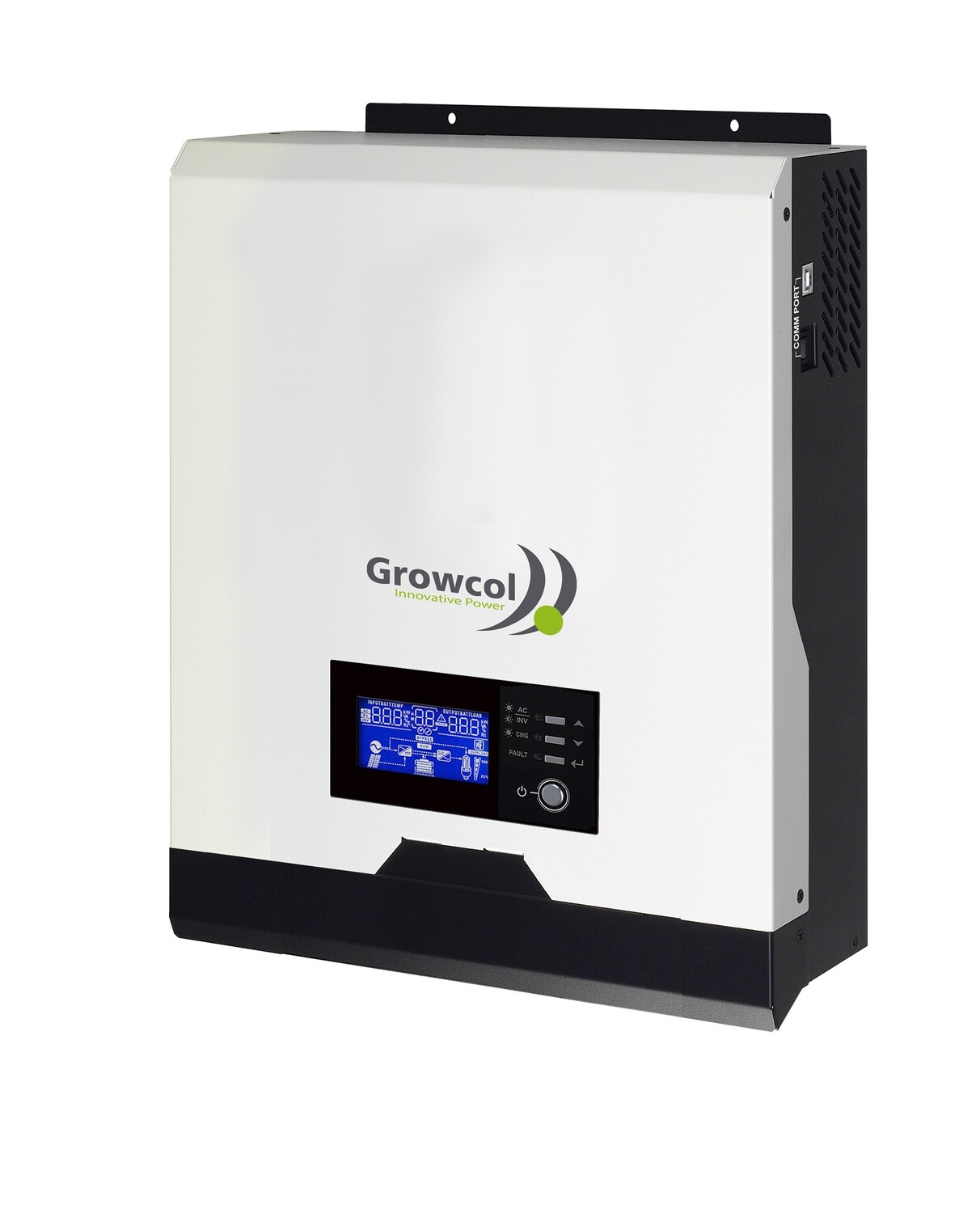

Growcol Axpert VM 3000 24V Hybrid Off-Grid Inverter – (2400W)

The Growcol Axpert VM 3000 24V Hybrid Inverter – (2400W)is a multi-functional inverter and charger, combining the functions of an inverter, solar charger and a battery charger to offer uninterruptible power support in a portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority and acceptable input voltage based on different applications.

This unit comes with a built-in MPPT allowing for Solar capabilities and can power all kinds of appliances on the home or office environment, including motor-type appliances such as tube lights, fans, refrigerators and air-conditioners.

2 (two) year warranty

Pure sine wave inverter
Built-in 40A MPPT solar charge controller
Enhance AC charger to 25A and solar charger to 40A
Wide battery input range
Selectable input voltage range for home appliances and personal computers
Selectable high power charging current
Configurable AC/Solar input priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload and short circuit protection
Smart battery charger design for optimized battery performance
Cold start function

RATED POWER: 3000VA/2400W

INPUT
- Voltage: 230 VAC
- Selectable Voltage Range: 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
- Frequency Range: 50 Hz/60 Hz (Auto sensing)

OUTPUT
- AC Voltage Regulation (Batt. Mode): 230VAC ± 5%
- Surge Power: 6000VA
- Efficiency (Peak): 90% ~ 93%
- Transfer Time: 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
- Waveform: Pure sine wave

BATTERY
- Battery Voltage: 24 VDC
- Floating Charge Voltage: 27.0 VDC
- Overcharge Protection: 31 VDC

SOLAR CHARGER & AC CHARGER
- Maximum PV Array Power: 1000W
- MPPT Range @ Operating Voltage: 30 VDC ~ 80 VDC
- Maximum PV Array Open Circuit Voltage: 102 VDC
- Maximum Solar Charge Current: 40A
- Maximum AC Charge Current: 25 A
- Maximum Charge Current: 60 A
- Maximum Efficiency: 93%

PHYSICAL
- Dimension, D x W x H (mm): 88 x 257 x 320
- Net Weight (kgs): 5.7

OPERATING ENVIRONMENT
- Humidity: 5% to 95% Relative Humidity(Non-condensing)
- Operating Temperature: -20°C - 55°C
- Storage Temperature: -30°C - 60°C
