Description:

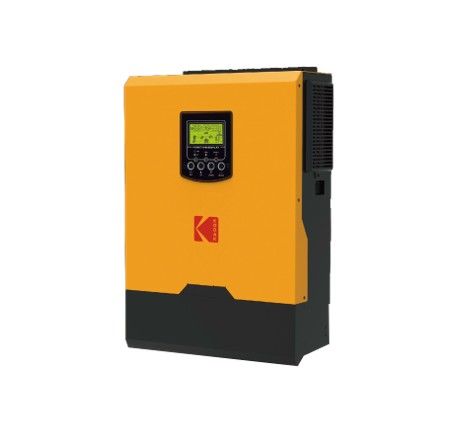

KODAK Off-grid inverter

The LP 3.2 is ideal as an affordable and fully functional centre of your off-grid system.

Wide MPP voltage range makes DC string design with your choice of module easy.

Best suited to smaller domestic systems where no parallel operation is needed.

Operates at 24V, so an ideal match with the Pylon US2500 24V model.

• Operates at 24V.
  • Built-in Wi-Fi for mobile monitoring
  • Selectable high power charging current
  • Built in BMS for optimal Li-Ion performance
  • Compatible with utility mains or generator
• Selectable input voltage range for home appliances and personal computers
• Compatible to Utility Mains or generator input Auto restart while AC is recovering
• Cold start function

For protection against unstable grid it is a must to install the Sollatek AVS device. Not installing this device may affect your product warranty.

Note: The Kodak LP inverter has a CAN-bus port included (BMS), which means a direct connection to Plyontech batteries is possible.

Therefore no other control module, such as the ICC, is needed.

Specifications:

Weight: 7.2 kg

Rated Power: 3,200 W

Min PPT Voltage: 60 V

Max PPT Voltage: 400 V

DC Startup Voltage: 60 V

DC Shutdown Voltage: 60 V

Max Input Voltage: 450 V

Max DC Power: 3,000 W

Max AC Power: 3,200 W

Max DC Current: 13 A

Max DC Inputs: 1

Has DC Fuses: 0

Connector: Screw Terminal

Included Connectors: 1

Euro Efficiency: 93 %

Transformer: None

IP Rating: IP20

MPPT Trackers: 1

Has Integrated DC Switch: No

Warranty: 3 years
