In stage 4 and above, lead acid batteries are being used outside of
their design parameters. This is due to long and frequent power outages
resulting in multiple battery cycles per day. The short periods between
load shedding cycles is also insufficient to recharge the battery
correctly. It is for this reason that no lead acid battery warranty in
if the load-shedding increases to stage 4 or above. Warranty will only be given on the built in battery if a 160W solar panel gets installed on the Power Trolley. (3 Month Warranty Only)

Overview & Features

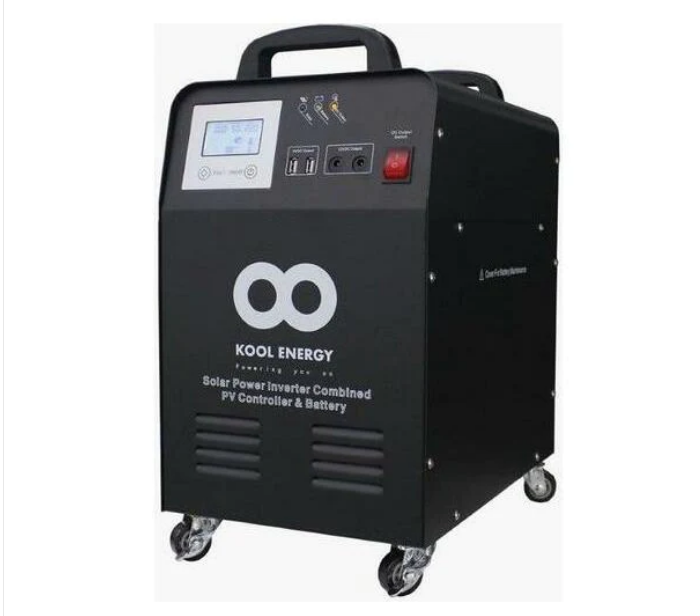

Tackle load shedding with the Kool Energy 1Kw 12V 1x100A Battery Pure Sine Wave Inverter + 360W Solar Charge Controller. Easy to move
around your home or office. Includes two SA socket outlets for your TV,
DSTV, DVD player, Laptop, ADSL/Fibre router.

It is recommended that the inverter NOT be used to power any heating
elements (kettle, microwave) as this will place excessive load on the
battery and thereby shorten the life span of the battery.

Features:

Kool Energy 1Kw 12V 1x100A Bat Pure Sine Wave includes 360W Solar charge controller – SOL-I-BB-KOOL

PRODUCT OVERVIEW

The product applies to diversified loads because its digital design, pure sine wave output and excellent over current protection can withstand the loads with a large starting current; the product is provided with independent solar three-stage charge management to improve charge efficiency of its battery and realize a longer life; the product provides universal 5VDC USB output port and 12VDC output to be widely applied to small solar power generation occasions including families, schools, street monitoring, forest monitoring, industrial and mining enterprises, frontier defense, sea islands, pasturing areas, etc.

MAIN FEATURES

• Excellent performance because of an MCU intelligent control technology;

• A wide range of applicable loads because of pure sine wave AC output;

• Convenient and practical 5VDC USB output port and 12VDC output port;

• Solar array and battery connrnon-anode system input;

• Charge by mains supply for flexible configuration (optional function);

• Overcharge protection and over discharge protection for a longer battery life;

• LCD and LED'S for visualization of operation status of the equipment

• Overall automatic protection and alarms Including

AC output over load protection, short circuit protection ,etc .

Description

THE BEST PORTABLE PLUG AND PLAY INVERTER

This plug and play inverter is easily transported to where ever you need
it and its compact size makes it easy to store away when not in use.

Its plug-and-play ability makes it the perfect companion during load
shedding and it will run your essential loads. This unit does not need
to be installed so you won’t have to spend on solar installations which
makes it even more cost-effective.

Pure Sinewave for Sensitive Electronics & Motorised Loads

Microprocessor Control Optimizes Reliability

Input Power Factor Correction

Output Power Factor 1.0

Comprehensive Display Allows Easy Monitoring & Access of UPS Status

Built-in MPPT solar charger

2 x USB 5 V DC output and 2 x 12 V DC output

Battery cut off switch for safety

Pre-installed batteries

Specifications

RATED POWER: 1000 W

OUTPUT VOLTAGE: 220 VAC

OUTPUT FREQUENCY: 50 / 60 Hz

OUTPUT WAVEFORM: Pure Sine Wave

SOLAR INPUT

MAXIMUM PHOTOVOLTAIC

VOLTAGE (VDC): ~ 25 V

CHARGE VOLTAGE (VDC): 10 V - 25 V

RATED CHARGE CURRENT (A): 30 A

MAXIMUM POWER (Wp): 360 Wp

VOLTAGE OVERCHARGE PROTECTION

(VDC): 14.2 V

VOLTAGE OVERCHARGE RECOVERY

(VDC): 14.0 V

VOLTAGE OF FLOATING CHARGE (VDC):

13.7 V

OUTPUT

AC OUTPUT:

2 x SA 3 Pin Socket - 230 V 50 Hz,

1000 VA / 1000 W Max. (Combined)

USB OUTPUT:

2 x USB Type A Port - 5 VDC 2 A Max.

DC OUTPUT:

2 x 12 V DC Port 2 A Max.

BATTERY TYPE:

1 x 12 DC 100 AH Deep Cycle

VRLA Gel Battery

Ports and Interfaces

1. AC Output

2. Smart Cooling Fan

3. AC Input

4. Solar PV Input

5. Battery Extension

6. Battery Switch

7. Led Indicator

8. LCD Display

9. Function Buttons

10. On / Off Buttons

11. 5VDC Output

12. 12VDC Output

13. DC Output Switch

What's in the box

1 x Kool Energy 1KW Inverter

Approximate Back-up Time Table

***The above table is a rough estimate only, and does not
guarantee any run-down times offered! Please do not consider these times
as fact. Due to the nature of these technologies, including but not
limited to the type and quality of batteries used, power draw from
connected devices, load fluctuation, etc. no fully accurate times can be
offered.
