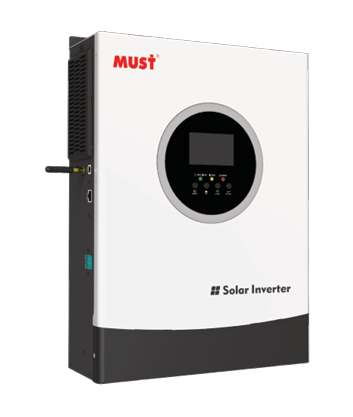

MUST 24V 3.0kW Hybrid Off-Grid Inverter + Wifi

Store/Inverters/Battery Inverters/Inverters with Built in Chargers/SK Inverters

Product Details

Must 3.0kVA Hybrid Off-Grid Inverter and 2.56kW Must Lithium Battery

Description:

PV1800 PREM is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 PREM Series can run without battery. The Maximum PV array open circuit voltage can reach 400V/450V. which Can help customers make full use of solar energy.

■ Pure sine wave output

■ Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).

■ Built-in MPPT solar charge controller

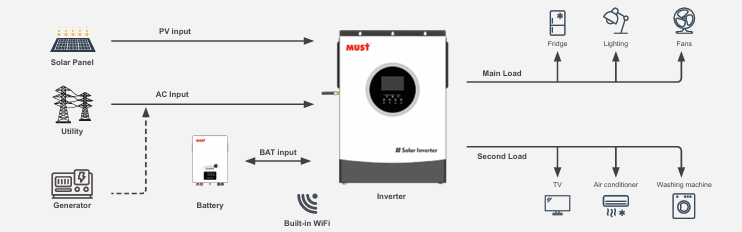

■ Combining solar system, AC utility, and battery power source to supply continuous power

■Overload, short circuit and Deep discharge protection

■ Cold start function

■ Support USB, RS485, CAN monitoring function

■WIFI remote monitoring (Built in wifi module and antenna)

■ PV/ AC activation function

■ BMS communication function (CAN Port)

■Dual output for smart load management

INVERTER SPECIFICATIONS

Rated Power: 3000VA / 3000W

Voltage: 230 VAC

Surge Power: 6000 VA

Waveform: Pure Sine Wave

Inverter Efficiency: 90-93%

Transfer Time: 10ms (UPS / VDE4105) / 20ms (APL)

Battery Voltage: 24 VDC

Maximum PV Array Open Circuit Voltage: 400VDC

Maximum PV Input Current: 18A

Charging Algorithm: 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li)

Maximum PV Array Power: 4000W

PV Array MPPT Voltage Range(Typ.): 30~320VDC

Maximum Solar Charge Current: 100A

Maximum AC Charge Current: 60A

Maximum Charge Current: 100A

Machine Dimension (W*H*D) 367*290*111mm

Weight: 7.6 kg
