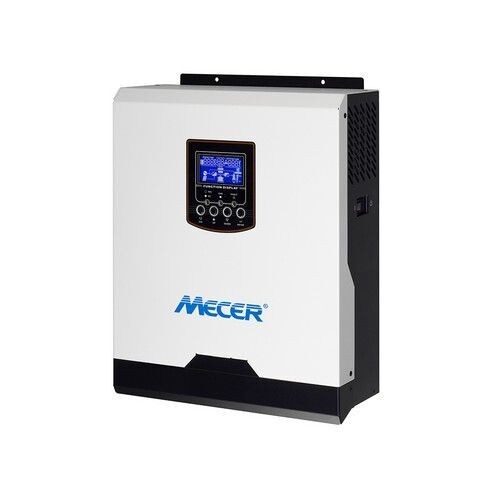

Mecer Axpert V 1kW Pure Sine Wave Inverter with 600W PWM controller
Mecer Axpert V 1kW Pure Sine Wave Inverter with 600W PWM controller, Configurable AC/Solar Input priority via LCD setting, PWM Solar charger Type, 600W Maximum PV Array power, 55 VDC Maximum PV Array open Circuit voltage, USB & RS-232 communication Port, 12 VDC battery voltage, 10ms transfer time
Overview:
Axpert V 1K/2K/3KVA/5KVA Cost-effective solar inverter
This
is a multi-functional inverter/charger, combining functions of
inverter, solar charger and battery charger to offer uninterruptible
power support in portable size. Its comprehensive LCD display offers
user-configurable and easy-accessible button operation such as battery
charging current, AC/solar charger priority, and acceptable input
voltage based on different applications.
Features:
Pure sine wave solar inverter
Output power factor 1
Selectable high power charging current
Wide DC input range
Selectable input voltage range for home appliances and personal computers
Configurable AC/Solar input priority via LCD setting
Compatible with mains voltage or generator power
Auto restart while AC is recovering
Overload and short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Optional anti-dust kit
Specifications:
Specifications
Product Code
SOL-I-AX-1VP
MODEL
Axpert VP1000-12
Rated Power
1000 VA / 1000 W
INPUT
Voltage
230 VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers), 90-280 VAC (For Home Appliances)
Frequency Range
60/50 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)
230 VAC ± 5%
Surge Power
2000 VA
Efficiency (Peak)
90%
Transfer Time
10 ms (For Personal Computers), 20 ms (For Home Appliances)
