Description:
With 8000W of capacity, it can easily take an average house off of the grid.
- Supports USB On-the-Go function
- Data log events stored in the inverter
- Reserved communication port for BMS (RS485, CAN-BUS or RS232)
- Replaceable fan design for ease of maintenance
- Battery independent design
- Configurable AC/PV output usage timer and prioritization
- Selectable high-power charging current
- Compatible to Utility Mains or generator input
- Built-in anti-dust kit
- Built-in DC output for DC fan, LED bulb, router and so on
- Parallel operation with 6 units
Rated Power 8000VA/8000W
Parallel Capability YES, 6 units
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 16000VA
93%
Transfer Time 15 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform Pure sine wave
No Load Power Consumption < 70W
DC Voltage 12 VDC ± 5%, 100W
BATTERY
Battery Voltage 48 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 66 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type MPPT
Maximum PV Array Power 8000W (4000W x 2)
MPPT Range at Operating Voltage 90 ~ 450 VDC
Maximum PV Array Open Circuit Voltage 500 VDC
Maximum Solar Charge Current 150A
Maximum AC Charge Current 120A
Maximum Charge Current 150A

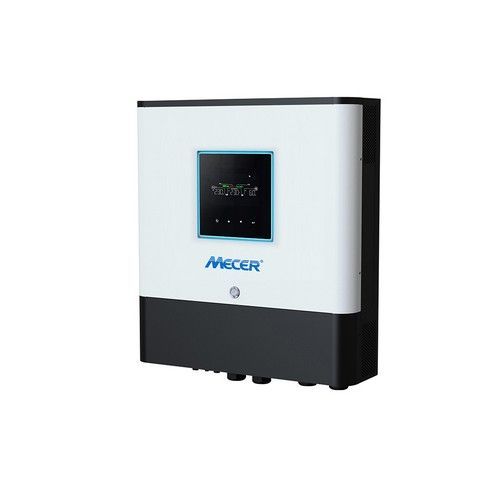

The Mecer MAX II inverter comes with a large colored LCD display and built in Wi-Fi for online mobile monitoring. The dual MPPT's will ensure you get optimal solar production.
Dimensions: D x W x H (mm) 158.4 x 503.6 x 530.8
Weight: 20kg
