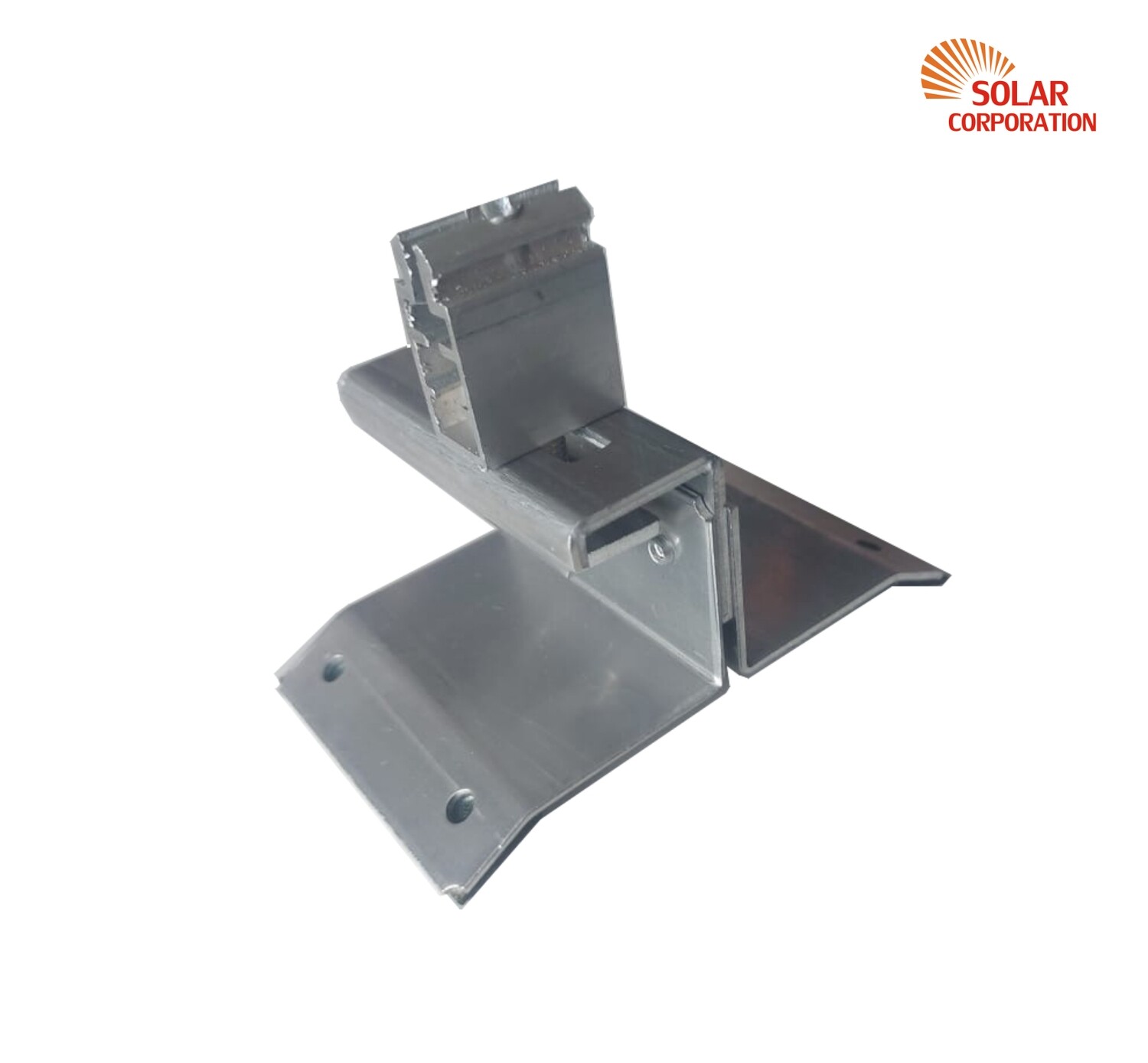

IITEM DESCRIPTION:CORRUGATED ROOF BRACKET
WEIGHT: 200g
MATERIAL SPECIFICATION: ALUMINIUM
PENETRATING/NON-PENE: PENETRATING
SPECIAL FEATURES: 4 Mounting points
INCLUDED COMPONENTS: 1 off KDS Push-Clip™ (To attach Roof Hook to Solar Rail)
1 Off Protective Rubber section
4 Off Mounting Screws
4 Off Aluminium Washer
APPLICATION NOTES: Use with KD Solar Rail, KDS Push-Clip™ End Clamp and KDS Push-Clip™ Middle Clamp
TOOLING REQUIRED: M6 ALAN KEY (MIDDLE AND END CLAMPS)
NUTSETTER FOR MOUNTING SCREWS
SUGGESTED QUANTITY CALCULATOR: Use 2 per panel plus 2 for the end of each row
