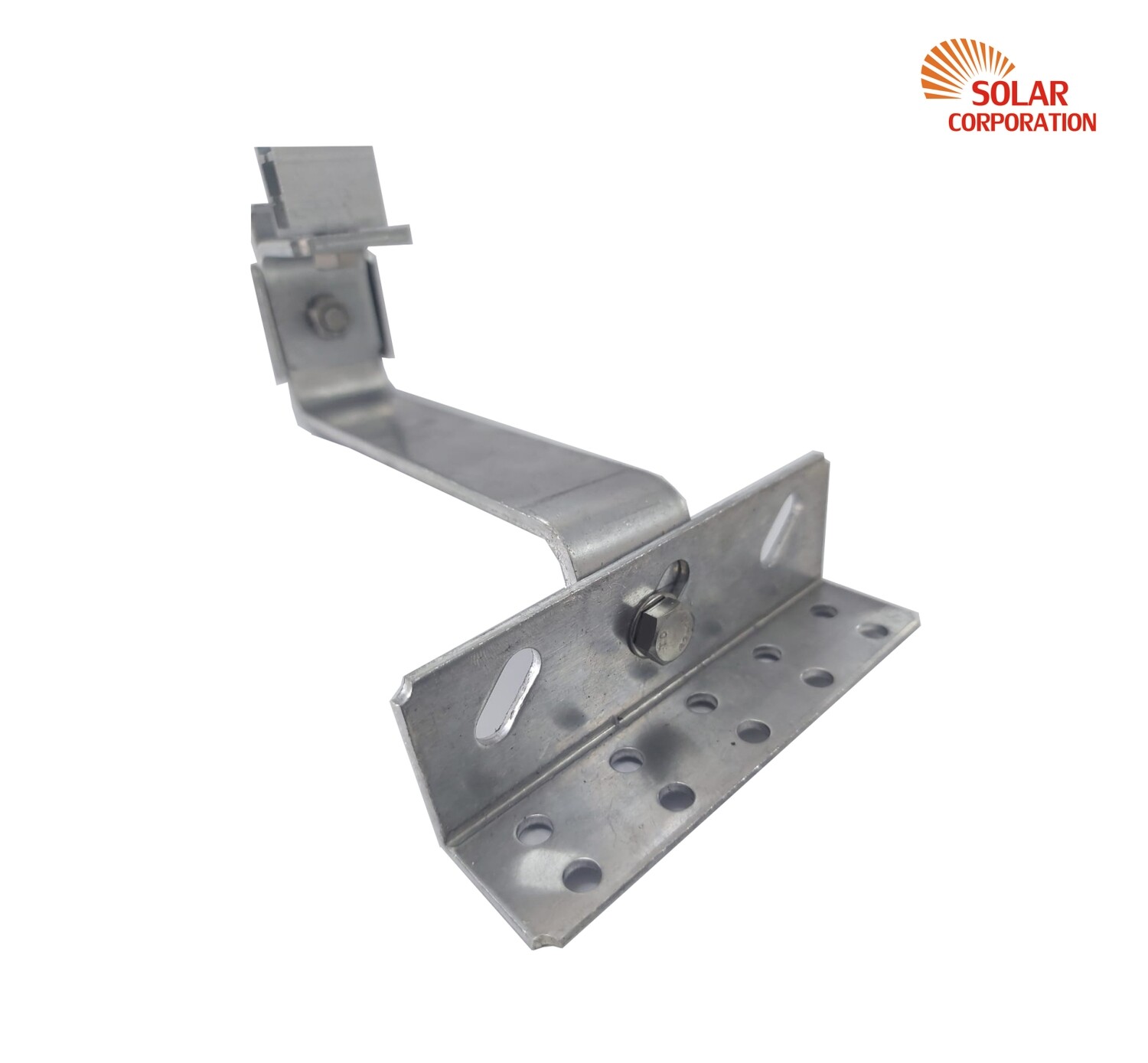

ITEM DESCRIPTION: Tile Roof Bracket with Main Rafter Anchor Plate
WEIGHT : 336g
PENETRATING/ NON-PENE: Penetrates main vertical Rafter
MATERIAL SPECIFICATION : Aluminium
SPECIAL FEATURES: Height Adjustable | Multiple mounting positions allowing for mounting adjustments
INCLUDED COMPONENTS:
1 off -PUSH-CLIP™ (To attach Roof Hook to Solar Rail)
2 off -RAF-SCREW (To attach Roof Hook to Main Rafter)
INSTALLATION INFO: Measure distance between main rafters for accurate panel layout and quantity requirements.
APPLICATION NOTES: Use with KD Solar Rail, KDS Push-Clip™ End Clamp and KDS Push-Clip™ Middle Clamp
TOOLING REQUIRED: M10 Nut Setter Tip for Drill (For Rafter Screw)
M6 Alan Key (Middle and End Clamps)
SUGGESTED QUANTITY CALCULATOR: Use 2 per panel plus 2 for the end of each row
