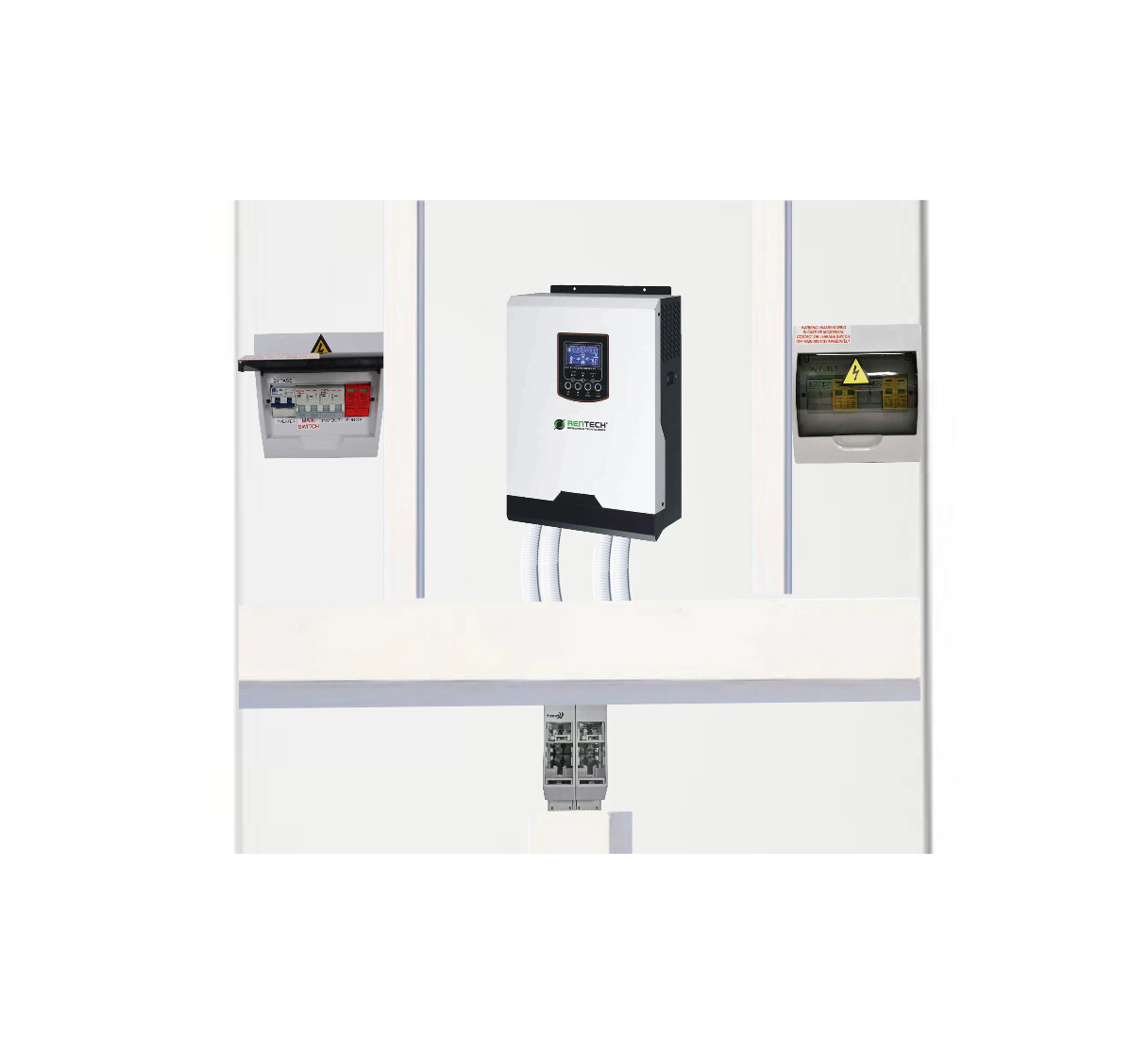

Complete pre-wired power board for solar system installations AC and DC Distribution 1IN1OUT 1 Solar String
Durable and Scratch resistant surface White Melamine 2750mm x 915mm x 16mm Board with 1mm PVC Durable Edging.
The Power Board consist of the following
Neat cable ways (PVC Trunking) to run all your AC cables from the Surface Mount 10Way AC DB board to the Inverter. The complete AC Db board distribute the incoming Grid Power (Input) from Grid and (Output) from the inverter to the Main Distribution board of the building. The 10 Way AC Distribution board is populated with a Double Pole Input Breaker, Surge Arrester, Double Pole Change Over Switch, Double Pole Output Breaker, Earth Leakage and 10A Circuit breaker to a 4x4 Wall Socket
Neat cable ways (PVC Trunking) to run all your DC cables from the Surface Mount 10Way DC DB board to the inverter. The complete DC DB board distribute the incoming PV Power (Input) from the Solar Panels into a Double Pole Fuse holder and Lightning Protection unit. From the Fuse disconnection and Lightning Protection we installed a Double Pole DC breaker to disconnect the incoming PV power to the inverter safely. 1IN 1OUT (450VDC) for 1 MPPT Inverters
Neat cable ways (PVC Trunking) to run all you Battery DC cables from the inverter Battery Connection to the Double Pole Battery Disconnect Switch. From the Battery Disconnect neat cable ways to run your Battery cables to your desired battery box or battery wall mount.
