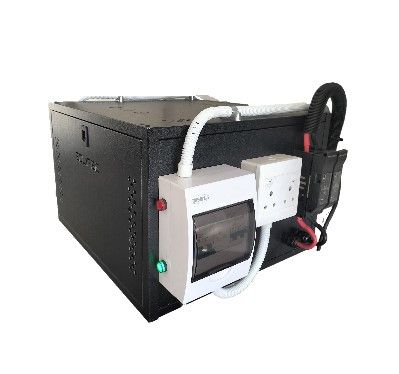

Complete pre-wired power board for solar system installations AC and DC Distribution 1IN1OUT 1 Solar String
The Power Cube consist of the following
Neat cable ways (PVC Sprag) to run all your AC cables from the Surface Mount 9Way AC DB board to the Inverter. The complete AC Db board distribute the incoming Grid Power (Input) from Grid and (Output) from the inverter to the Main Distribution board of the building. The 10 Way AC Distribution board is populated with a Double Pole Input Breaker, Surge Arrester, Double Pole Output Breaker, and 10A Circuit breaker to a 4x4 Wall Socket. Input and Output Pilot lights.
Neat cable ways (PVC Sprag) to run all your DC cables from the Surface Mount 9Way DC DB board to the inverter. The complete DC DB board distribute the incoming PV Power (Input) from the Solar Panels into a Double Pole Fuse holder and
(Lightning Protection Optional)
(DC Breaker Optional)
Neat cable ways (PVC Sprag) to run all you Battery DC cables from the inverter Battery Connection to the Double Pole Battery Disconnect Switch. From the Battery Disconnect neat cable ways to run your Battery cables to your battery box.
