The circulation pump is used to pump liquids in piped systems in particular water heating systems

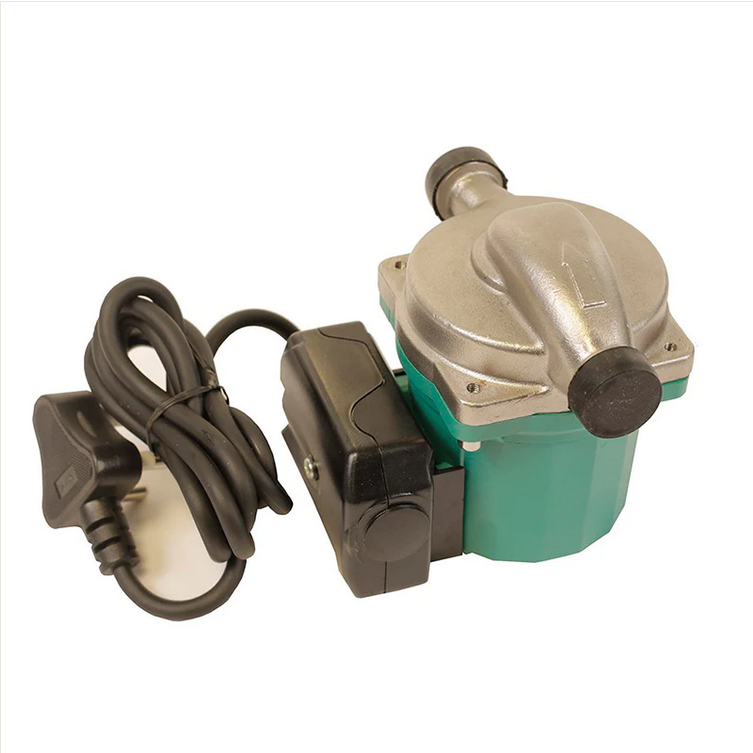

Geyserwise 220V Hot Water Circulation Pump is suitable for installation in balanced pressured solar
systems or for hot water circulation.
When installing the pump be sure to follow the appropriate instructions of each particular manufacturer for all other components as well:
Installation of geyser.
Installation of solar collectors
Installation of controllers
Follow rules according to SANS110106
The Geyserwise 220V Hot Water Circulation Pump must not be operated in the following environments:
Outdoors
In damp rooms
In rooms in which the operation of electrical and electronic components may be dangerous
Installation – Pump circled in red. Always at the lowest point to prevent pump from running dry. Pump cannot run dry – it will get damaged.
What’s in the box?
Pump
Fittings
Use the 220V circulation pump with DeltaT timer and differential control on pumped solar system
Clear display of water temperature, time, day, heating mode and malfunction conditions on solar system and geyser.
Auto or manual heating.
Easy temperature setting to your requirements (30 – 65°C) factory default is 55°C.
Four different temperature settings.
Daily programmable timer with four time settings.
Error conditions alert by warning code E2 to E5 and E7 to E9.
Electronic thermostat with mechanical thermal cut-out at 90°C. Please note the cut-out temperature for systems expected to reach temperatures above this temperature.
