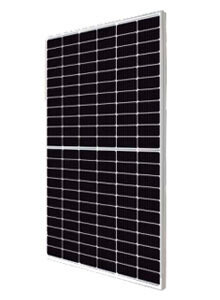

HiKu CS6L

HiKU High Power Mono module 460W (CS6L-460MS)

Electrical Data | STC* - CS6L 460MS

• Nominal Max. Power (Pmax): 460W.
• Opt. Operating Voltage (Vmp): 34.8 V.
• Opt. Operating Current (Imp): 13.24 A.
• Open Circuit Voltage (Voc): 41.4 V.
• Short Circuit Current (Isc): 14.0A.
• Module Efficiency: 21.3%.
• Operating Temperature: -40°C ~ +85°C.
• Max. System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL).
• Module Fire Performance: TYPE 1 (UL 1703) or CLASS C (IEC 61730).
• Max. Series Fuse Rating: 20 A.
• Application Classification: Class A.
• Power Tolerance: 0 ~ + 5 W.

MORE RELIABLE (THANKS TO HALF CUT CELL TECHNOLOGY):

• Lower internal current, lower hot spot temperature
• Cell crack risk limited to smaller area of the cell
• Innovative symmetrical module design means better shading tolerance
• Heavy snow load up to 5400Pa and increased wind load up to 3600Pa

Power Range: up to 460W

Cell: 120 [2 x (10x6)] x High Efficiency Mono

Dimensions: 1903 x 1134x 30 mm

Weight: 24.3 kg

Comes with original Staubli MC4 connectors.
