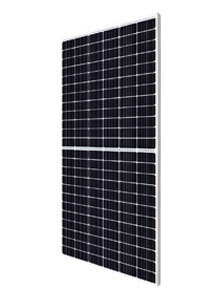

Canadian Solar 590W TopHiKU6 Super High Power N-type TopCon module with EVO2 and F30 Frame
Part No: CS6W-590T-F30-EVO2
Panels - Mono-crystallines
Rating: 590W
Efficiency: 22.8%
Width: 1,134mm
Height: 2,278mm
TopHiKU6 Super High Power N-type TopCon.
Frame thickness for this module has improved from 35mm to 30mm.
MORE POWER:
Module efficiency up to 22.8 %.
Up to 4.5 % lower LCOE, Up to 5.6 % lower system cost.
Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation.
Compatible with mainstream trackers, cost effective product for utility power plant.
Better shading tolerance.
MORE RELIABLE:
Minimizes micro-crack impacts.
Heavy snow load up to 5400Pa and increased wind load up to 2400Pa.
12 year product warranty 25 year power output warranty
Comes with Staubli EVO2 Connectors.
Weight: 27.6kg
Rated Power: 590 W
MCS Reference: CS6W-590T-F30-EVO2
Length: 2,278 mm
Width: 1,134 mm
Depth: 30 mm
VMPP: 43.5 V
IMPP: 13.57 A
Isc: 14.06 A
Voc: 52.6 V
Temp. Coefficient (Mpp): -0.34 %
Clamp position on panel: Long side only
Connector Type: EVO2
Efficiency: 22.8 %
Pallet Size: Oversized
Canadian Solar Inc. is one of the leading solar manufacturers in the world, delivering industry leading high efficiency solar cells, solar modules, solar power systems and off grid solar power application solutions. Canadian Solar was founded in 2001 in Toronto, Canada by Dr. Shawn Qu, President and CEO of Canadian Solar.
