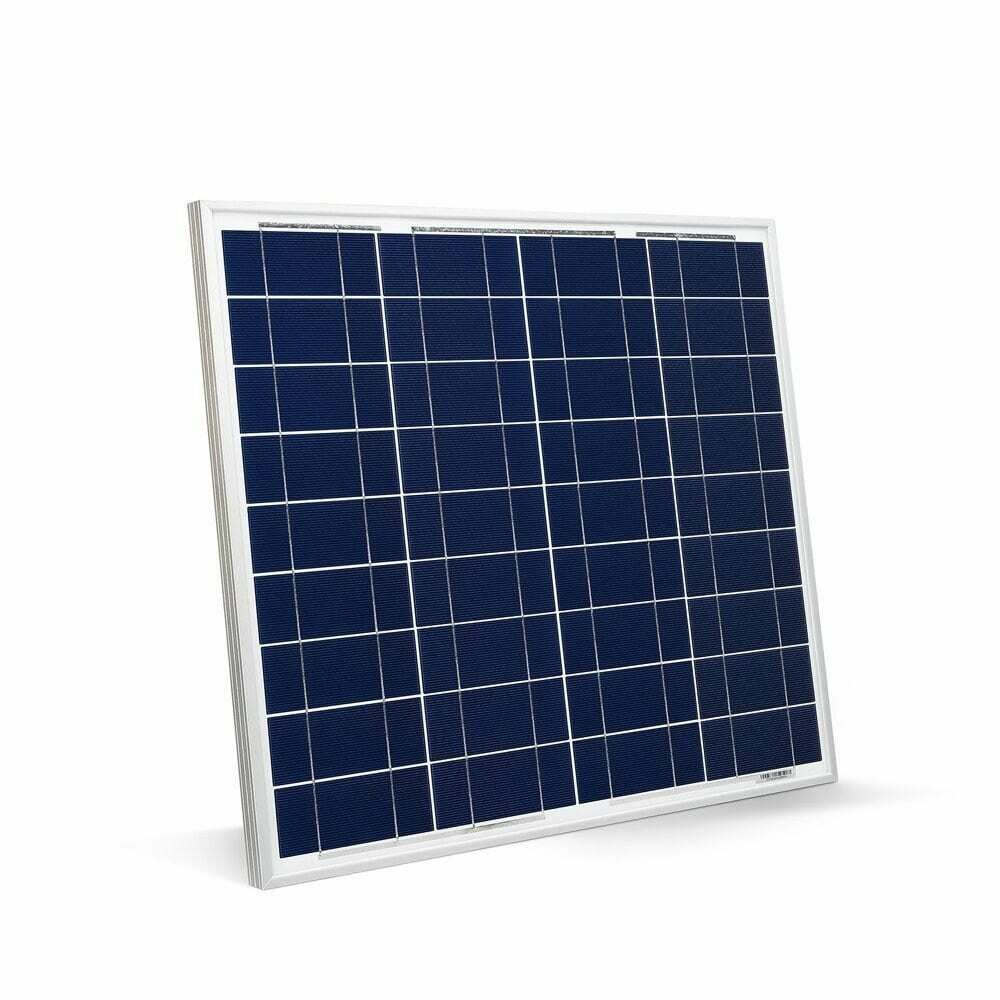

12V 50W Solar Panel (36 Cell)

Technical Specifications

• Maximum Power at STC (Pmax): 50W.
• Optimum Operating Voltage (Vmp): 17.8V.
• Optimum Operating Current (Imp): 2.81A.
• Open-Circuit Voltage (Voc): 22.00V.
• Short-Circuit Current (Isc): 3.01A.
• Solar Module Efficiency (%): 14.01.
• Dimension: 695 mm x 510 mm x 25mm.
• Weight: 5kg.
• Operating Temperature: -40˚C to 85˚C.
• Maximum System Voltage (DC): 1000.
• Maximum Series Fuse Rating: 10A.
• Power Tolerance: +/-3%.
• Cell Type: Poly.
• Number of Cells: 36 Cell (156 x 156 series)

STC: Irradiance 1000W/㎡, Modules Temperature 25℃, AM=1.5

Features

• Aesthetic appearance with excellent efficiency based on innovative photovoltaic technologies.
• High quality, strong aluminium frame, passing mechanical load testing 5400 Pa and wind pressure 2400Pa.

Warranties

• 10 years limited product warranty.
• 10 years at90% of the minimal rated power output.
• 25 years at80% of the minimal rated power output.

Quality and Safety

• Rigorous quality control meeting the highest international standards.
• High-transmissivity low-iron tempered glass, strong aluminium frame.
• Using UV-resistant silicon.
• ISO 9001:2008 、ISO 14001:2004 and OHSAS18001.
• IEC61215, IEC61730, Safety Class II, conformity to CEQ.
