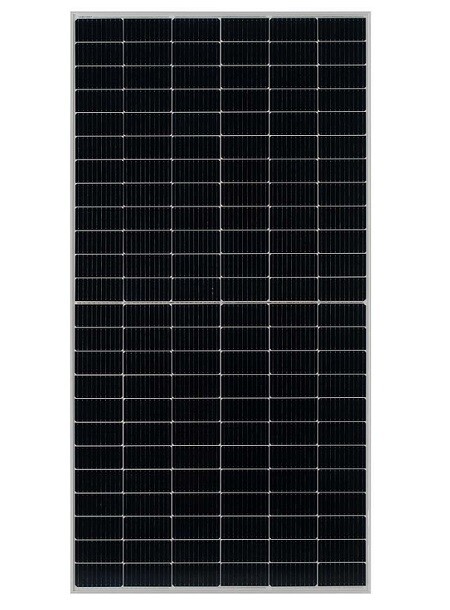

Jinko 590W Solar Panel Mono PERC Half Cell (JKM590N-72HL4-V-S)
Description
General Data
• Model No: JKM590N-72HL4-V-S
• Cell: Half Cell, Mono Crystalline
• No. of Cells: 144(6×24)
• Glass: Single Glass 3.2mm AR Coated Tempered
• Junction Box: IP68
• Connector: MC4
Electrical Parameters at STC
• Maximum Rated Power(Pmax): 590W
• Maximum Power Voltage(Vmp): 43.71VDC
• Maximum Power Current(Imp): 13.50A
• Open Circuit Voltage(Voc): 52.63VDC
• Short Circuit Current(Isc): 14.13A
• Module Efficiency: 22.8%
Operating Conditions
• Maximum System Voltage: 1500VDC
• Maximum Series Fuse: 25A
• Operating Temperature: -40°C to 85°C
Safety Ratings
• IEC 61215
• IEC 61730
Technical Specifications Electrical Data | STC* - PERC Mono
Nominal Max. Power (Pmax): 590 W.
Opt. Operating Voltage (Vmp): 43.71 V.
Opt. Operating Current (Imp): 13.50 A.
Open Circuit Voltage (Voc): 52.63 V.
Short Circuit Current (Isc): 14.13A.
Module Efficiency: 22.8%.
Operating Temperature: -40°C ~ +85°C.
Max. System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL).
Module Fire Performance: TYPE 1 (UL 1703) or CLASS C (IEC 61730).
Max. Series Fuse Rating: 30 A.
Application Classification: Class A.
Power Tolerance: 0 ~ + 5 W.
* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C.
