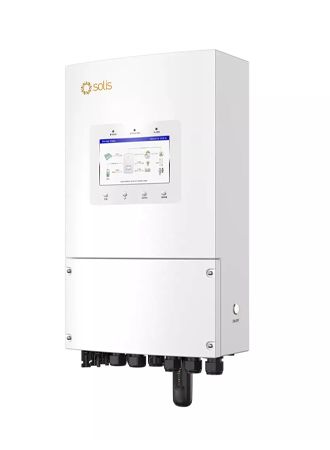

Solis S6 8kW Plus Full Hybrid Inverter 48V 16000W MPPT + Touch Screen

Product Details

Solis Single Phase Low Voltage Energy Storage Inverters New PLUS model provides solutions for demanding power scenarios

• Supports PV input up to 160% of the inverter's rated DC power, maximising solar utilisation

• Supports up to 21A PV input current, compatible with future higher-power PV modules

• 200% overload for 10s in off-grid mode, ensuring stable startup of motors, water pumps and air conditioners

• Seamless on/off-grid switching in under 10ms, guaranteeing an uninterrupted power supply

• More battery options, compatible with any battery (between 40V-60V)

• Support max 6 units in parallel, expanding system capacity

• Smart Load management, extending backup time for critical loads

• Customizable battery backup level for uninterrupted power

• Supports PV-only off-grid operation, reducing upfront costs

• SolisCloud: Smart remote control, AI optimisation, and instant troubleshooting - all in one platform

• Supports existing PV grid-tied power connection for export control and off-grid use

• Multiple methods of generator connection and auto control, enabling flexible local deployment

• 7-inch industrial-grade touchscreen, providing a larger, user-friendly interface for local operation

• Ingress protection IP66, for operation in harsh conditions

Max PV array size of 16000W dual MPPT with PV string current of 32A/32A at 500V.
Max usable PV input of 12800W dual MPPT with PV string current of 32A/32A at 500V.
Supports 1ph and 3ph flexible parallel connections with 6 units max for 48kW back-up.
Generator connectivity with automatic On/Off control.
190A charge and discharge current.
10 second, 200% surge power backup overload capability.
24 hour real-time intelligent energy management - Bluetooth/Wi-Fi/App.
Uninterrupted power supply with 4ms reaction time.
Comes with a Wi-Fi/LAN datalogger, CT and more.
10-year warranty
SA: NRS 097 certified and CoCT approved.

Battery Input Data

PV String Input Data

AC Output Data

Efficiency

Protection

Certifications and Standards

Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727
Safety Regulation: IEC62109-1, IEC62109-2
EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B
