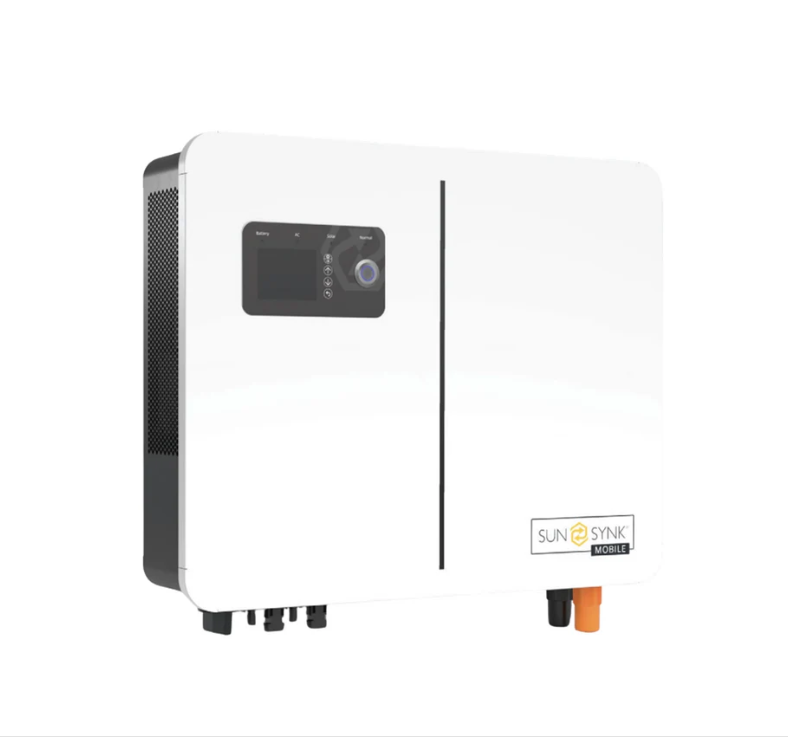

Sunsynk Lynks 6kW 48Vdc Single Phase Hybrid Inverter

The Lynks is suitable for use with conventional PV’s, wind turbines, and micro inverters, meaning it’s flexibility allows it to be used in just about any scenario. Delivering robust power, this 6000W hybrid inverter efficiently meets various energy requirements.

The Powerlynk Lynks 6kW Hybrid Inverter is a high-performance energy solution designed to provide reliable power conversion for residential and commercial applications. This advanced hybrid inverter supports both grid-tied and off-grid functionality, ensuring a seamless power supply to essential loads. With its high efficiency, fast switching time, and comprehensive protection features, it is ideal for solar power systems, battery storage, and backup power solutions.

• Dual MPPT design
• Battery storage expandable with SUN-L5.12 compatible
• Mobile App for monitoring
• Automatic switching from Grid-Tied to Off-Grid mode
• Zero export function
• Up to 6 units with the same firmware can be paralleled
• Essential and Non-Essential Loads outputs
• Comes with the Wi-Fi logger and CT

INSTALLER NOTICE: Installations with Sunsynk products now need to be registered here to gain full activation of the warranty.

Includes: Wi-Fi Dongle + BMS Communication Cable

Higer yields.

• Improve self-consumption ratio up to 80%, reducing your electricity bill.
• DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
• Two MPPT design, Max. efficiency of 97.6%.

User-friendly.

• LCD Touch screen and buttons, easy operation.
• Compatible with lithium-ion battery and lead acid battery.
• Web browser and mobile App monitoring supported.

Reliable.

• PV lighting protection, Anti-islanding protection, Leakage current protection etc.
• Support store energy from DG when needed, ensure the system working within 7*24H.
• IP65 protection degree, adapt to indoor and outdoor using.
• Automatically switch from on-grid to off-grid mode within 5ms.
• Zero exporting function, fast reaction within 200ms in zero export mode.

Smart.

• Programmable charging and discharging schedule.
• Both wind turbines and solar panels can be connected as DC input power.
• Max. 6 units can be paralleled for higher system power.
• Retrofitting of existing solar system to energy storage system.

PV String Input Data

• Max. DC Input Power (W): 8000W.
• PV input Voltage (V): 370V (100V-500V).
• MPPT Range (V): 120-450V.
• Start-up Voltage (V): 150V.
• PV Input Current (A): 15A
• No. of MPPT Trackers: 2
• No. of Strings Per MPPT Tracker: 1+1.

AC Output Data

• Rated AC Output and UPS Power (W): 6000W
• Max AC Output Power (W): 6000W
• Peak Power(off-grid): 2 times of rated power, 10 S.
• AC Output Rated Current(A): 26A
• Max.AC Current(A): 26A
• Max Continuous AC Pass-through(A): 40A.
• Output Frequency and Voltage: 50Hz; 240Vac,
• Grid Type: THD<3%(Linear load<1.5%).
• Current Harmonic Distortion: THD<3% (Linear load<1.5%).

Efficiency

• Max. Efficiency: 97.60%
• Euro Efficiency: 96.50%
• MPPT Efficiency: 99.90%

Protection

• PV Arc Fault Detection: Integrated (Except European Type)
• PV Input Lightning Protection: Integrated
• Anti -islanding Protection: Integrated
• PV String Input Reverse Polarity Protection: Integrated
• Insulation Resistor Detection: Integrated
• Residual Current Monitoring Unit: Integrated
• Output over Current Protection: Integrated
• Output Shorted Protection: Integrated
• Output over Voltage Protection: Integrated

Certifications and Standards

• Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727
• Safety Regulation: IEC62109-1, IEC62109-2
• EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B

General Data

• Operating Temperature Range ( C ): -25—60 C , >45 C Derating
• Cooling: Fan
• Noise (dB): <30
• Communication with BMS: RS485; CAN
• Gross Weight (kg): 19
• Size (mm): 514 X 420 X 140mm
• Protection Degree: IP65
• Installation Style: Wall-mounted
• Warranty: 5 years
