Features of the Deye 6kW Hybrid Off-Grid Inverter:

NOTE:

Ideal for coastal areas since it is IP65 rated.

Does not feed back to Grid.

The Deye 6kW Off-Grid Single Phase Inverter is a cutting-edge energy solution designed to deliver efficient, reliable, and eco-friendly power. It allows users to tap into the potential of solar energy while ensuring a continuous power supply with advanced features for battery storage and grid integration. Whether you need off-grid power or a backup solution, this inverter is an essential component of a sustainable, cost-effective energy system.

With its 6kW capacity, the Deye Off-Grid Single Phase Inverter is perfect for a variety of applications, from residential solar installations to small commercial systems. It seamlessly supports solar generation, battery storage, and grid connection, making it an ideal choice for homes, businesses, and remote locations seeking a dependable, green energy solution.

Off-grid Functionality

Colourful touch LCD

IP65 protection degree – Ideal for coastal areas

Battery Management System (BMS)

AC couple to retrofit existing solar system

Max. 16 pcs parallel for on-grid and off-grid operation

Support multiple batteries parallel

Max. charging/discharging current of 135A

Support storing energy from diesel generator

Applications of the Deye 6kW Off-Grid Hybrid Single Phase Inverter

Off-Grid Solar Systems – Ideal for remote locations without access to the power grid, providing a self-sustaining power source.

Residential Power Solutions – Provides clean energy for homes, reducing reliance on traditional electricity sources and cutting energy costs.

Small Commercial Installations – Suitable for small businesses or rural setups that require stable, renewable energy solutions.

Energy Independence – A great choice for those looking to reduce their carbon footprint and move toward energy independence by utilizing renewable solar energy.

Detailed Description

6kW Power Output

Ideal for medium to large-sized homes or small businesses requiring substantial energy supply.

Off-Grid & Grid-Tied Capabilities

Works in both off-grid mode, where the system is fully isolated from the utility grid, and hybrid mode, where solar power is used alongside grid power.

High Efficiency

Features a maximum efficiency of 98%, ensuring minimal energy loss and optimal utilization of the generated solar power.

Integrated Battery Management System (BMS)

Ensures safe charging and discharging of batteries, prolonging the lifespan of the system and preventing battery damage.

Multiple Battery Compatibility

Compatible with both lithium-ion and lead-acid batteries, allowing for a choice of storage options based on user preference and cost.

Seamless Switching

Instantly switches between solar, battery, and grid power based on energy demand and availability, ensuring continuous power supply.

LCD Display

Provides real-time data and performance monitoring, including solar power generation, battery status, and grid input/output.

Remote Monitoring

Allows users to monitor the system remotely via an app or web portal, providing convenient access to performance data.

Compact Design

Space-saving design allows for easy installation in residential or small commercial setups.

Built-in Protections

Includes essential protection features such as overvoltage, over-temperature, short-circuit, and overcurrent protection for enhanced safety.

Quiet Operation

Operates silently, making it ideal for residential areas where noise levels are a concern.

International Standards Compliance

Meets CE, IEC 62109, and other relevant safety and quality standards.

Technical Specifications

• Max Efficiency: 97.6%
• MPTT Efficiency: >99%
• Operating Temperature Range (℃): -40 to +60℃, >45℃ Derating
• Permissible Ambient Humidity: 0-100%
• Permissible Altitude: 3000m
• Noise (dB): >45
• Ingress Protection(IP) Rating: IP65
• Inverter Topology: Non-Isolated
• Over Voltage Category: OVC II(DC), OVC III(AC)
• Type of cooling: Intelligent Air Cooling
• Warranty: 5 Years directly with Deye South Africa
• Standards Compliance: IEC 62109, IEC 61727, CE certified

Battery Power Rating:

When used with inverters, 1 x 100Ahr (5300Whr) Lithium battery will deliver 4800Wh usable energy when discharged at 90% Depth of Discharge (DOD). Therefore, to take into account the expected current draw of the inverter, Solar Corporation recommends that the minimum number Lithium batteries be linked to the site-specific base load as follows:

Recommended Base Load: 10Hour Discharge Rate

Its max DC input voltage for 500V makes it ideal for 10 X 72 cell modules (320W - 540W) or 12 X 60 cell modules (260W - 400W) per string.

With 4 x 550W Solar Panels the system will produce an average of 11000W per sunshine day without any losses deducted. (Shade, dust, cable length etc.)

Features of the Deye Battery:

• Capacity: 5.32 kWh.
• Chemistry: Lithium Iron Phosphate (LiFePO4).
• Capacity: 104Ah.
• Nominal Voltage: 51.2V.
• Current: 104Ah.
• Operating Voltage: 43.2-57.6V.
• Energy: 5.32kWh.
• Usable Energy: 4.79kWh.
• Weight Approximate: 45 kg.
• Dimensions: 560 x 130 x 440 mm

Battery Charge / Discharge Current (A).

• Recommend: 50A.
• Max.: 100A.
• Peak: 120A (30s, 25).

Deye Battery Parameters

• Cycle Life: ≥6000.
• Recommend Depth of Discharge: 90%.
• Installation: Floor-Mounted, Wall-Mounted.
• IP Rating of Enclosure: IP20.
• Communication Port: CAN2.0, RS485.
• Certification: CE, IEC62619, UN38.3.
• Warranty: 10 years (when paired with a Deye inverter).
• Deye 5.32kwh Battery can store 4.78 kilowatt-hours of energy.

Benefits of the Deye Battery:

• Safe and reliable: (LiFePO4) chemistry, safest and most stable types of lithium-ion battery.
• Long lifespan: The battery is rated for up to 6000 cycles, which means it can last for many years.
• Scalable: Up to 64 batteries can be connected in parallel to provide a maximum capacity of 340kWh.
• Battery Management System (BMS): The BMS ensures the safe operation of the battery by monitoring voltage, current, and temperature.

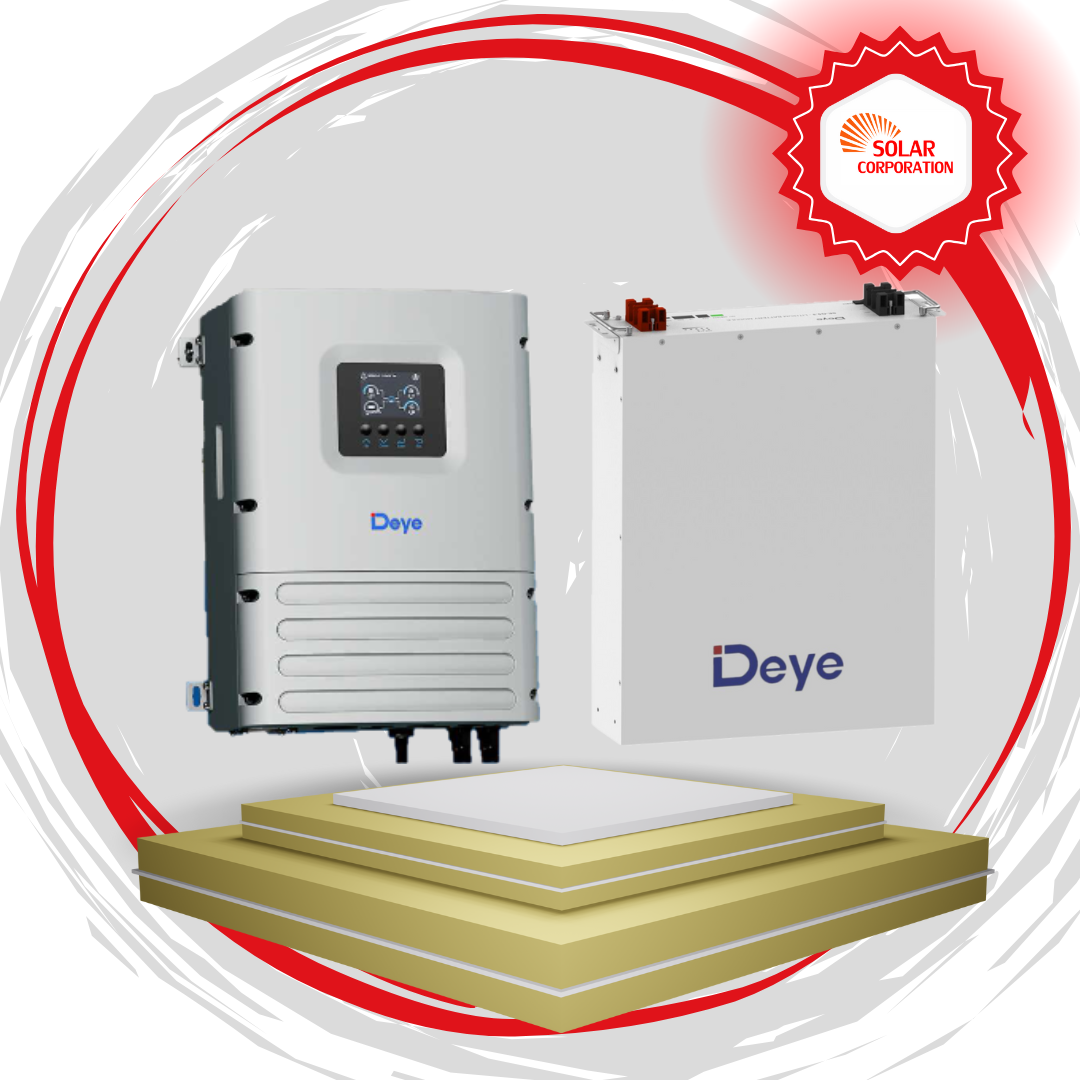

The DEYE6-BACKUP package includes:

• 1 x 48V DEYE 6kW Hybrid Off-Grid Solar Inverter
• 1 x 51.2V DEYE 5.3kW Lithium Battery

DEYE6-BACKUP System Performance:

The DEYE 6kW Inverter have a rated power output of 6000W and have a maximum solar panel array power of 9600W

1 x DEYE 5.3kW Lithium battery you will have 4800Whr usable energy if you discharge the battery to 90% depth of discharge (DOD) every day.
