System Growcol Hybrid Off-Grid 24V 3kVA Inverter 2.56kW Lithium
R19 990.00ZAR
Price incl. VAT (15%) R2 607.39ZAR
Inverter Included
Lithium Battery Included
Battery Disconnector
Battery Cable included
1
Save this product for later
System Growcol Hybrid Off-Grid 24V 3kVA Inverter 2.56kW Lithium
Product Details
Growcol 3.0kVA Hybrid Off-Grid Axpert VM
Description:
The Growcol Axpert VM 3000 24V Hybrid Inverter – (2400W)is a multi-functional inverter and charger, combining the functions of an inverter, solar charger and a battery charger to offer uninterruptible power support in a portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority and acceptable input voltage based on different applications.
This unit comes with a built-in MPPT allowing for Solar capabilities and can power all kinds of appliances on the home or office environment, including motor-type appliances such as tube lights, fans, refrigerators and air-conditioners.
2 (two) year warranty
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterrupted power supply in a portable size. It’s comprehensive LCD display
offers user-configurable and easy accessible button operation such as
battery charging current, AC/solar priority, and acceptable input
voltage based on different applications.
INVERTER SPECIFICATIONS
Rated Power: 3000VA / 2400W
Voltage: 230 VAC
Surge Power: 6000 VA
Battery Voltage: 24 VDC
Solar array: 1300W
Transfer time: 20 ms (typical)
Dimensions (mm): (d) 88 x (w) 257.6 x (h) 320
Weight: 5.7 kg
- Warranty: Standard 2 year warranty
Please note that this unit has a continuous fan and should not be placed in low noise areas such as bedrooms and living rooms
- INVERTER FEATURES AND BENEFITS
- Pure sine wave solar inverter
- Configurable input voltage range for home appliances and personal computers via LC setting
- Configurable battery charging current based on applications via LCD setting
- Configurable AC / solar charger priority via LCD setting
- Compatible to mains voltage to generate power
- Auto restart while AC is recovering
- Overload, over temperature and short circuit protection
- Smart battery charger design for optimized performance
- Cold start function
- Lithium Battery FEATURES AND BENEFITS
2 x Champion 12.8V 100Ah Lithium-Ion Battery – (2.56kWh) has the following remarkable characteristics:
- Long lifespan of 4000 cycles at 60% DoD at 25’C.
- Excellent charge and discharge capacity.
- The Batteries can support up to 4 Series batteries 4 in parallel for expansion.
- The Batteries are set to sleep mode (off) during transportation and storage to reduce loss of capacity.
- Also, disconnect active power from output terminals for enhanced safety.
- Lightweight and compact.
- Easy to install and maintain.
- Built-in Battery Management System (BMS).
- 2 x Champion 12.8V Lithium-Ion Battery – 100Ah / 2.56kWh is superior, empowering, and an excellent long-term investment.
- Environmentally friendly.
This product has a 3-year warranty with a 10-year + life expectancy
Power Rating:
When used with Axpert inverters, 1 x 100Ahr (2560Whr) Lithium battery will deliver 2300Wh usable energy when discharged at 90% Depth of Discharge (DOD). Therefore, to take into account the expected current draw of the inverter, Solar Corporation recommends that the minimum number Lithium batteries be linked to the site-specific base load as follows:
Recommended Base Load: 10Hour Discharge Rate
| Recommended Base Load | Usage |
No. of 100Ahr Lithium Batteries | Runtime hours |
| 300W | 2100Whr | 1 x (90% DOD 2300Whr) |
7 |
| 600W | 2100Whr | 1 x (90% DOD 2300Whr) | 3.5 |
| 1000W | 2000Whr | 1 x (90% DOD 2300Whr) | 2 |
| 800W | 4400Whr | 2 x (90% DOD 4600Whr) | 5.5 |
| 500W |
4500Whr |
2 x (90% DOD 4600Whr) | 9 |
Its max DC input voltage for 102V makes it ideal for 4 X 72 cell modules (320W - 540W) or 6 X 60 cell modules (260W - 400W).
With 2 x 380W Solar Panel the system will produce an average of 3800W per sunshine day without any losses deducted. (Shade, dust, cable length etc.)

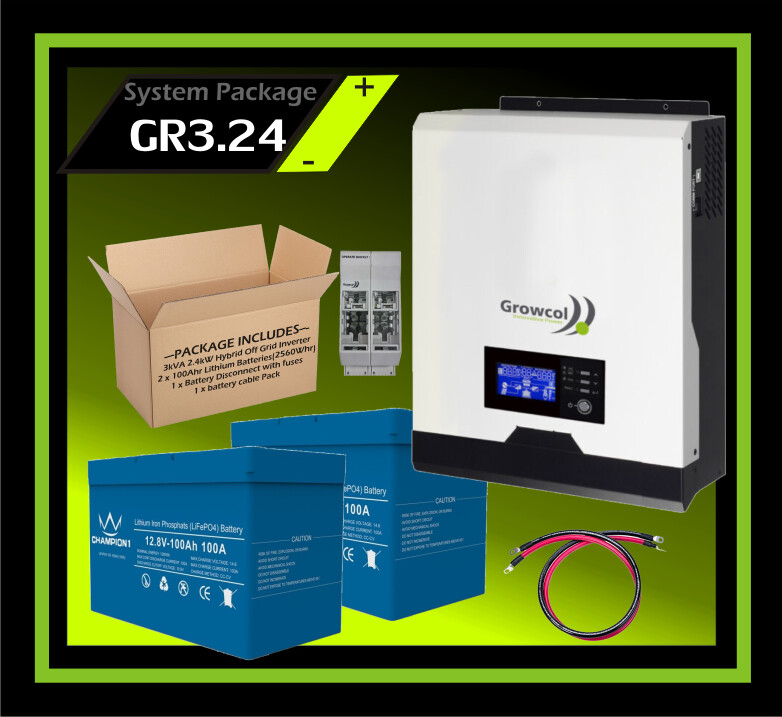

The WATT package includes:
- 1 x Growcol Axpert VM 3000 Off-Grid Solar Inverter 2.4kW 24V
- 2 x Champion 12.8V 1.28kW Lithium Batteries
- 1 x battery
- Battery Disconnect with 80A Blade Fuses.
- Battery Cable Pack
GR3.24 System Performance:
The growcol Axpert VM Inverter have a rated power output of 2400W and have a maximum solar panel array power of 1300W
2 x Champion 1.28kW Lithium battery you will have 2300Whr usable energy if you discharge the battery to 90% depth of discharge (DOD) every day.
