System Kodak Hybrid Off-Grid 24V 3kW Inverter 2.8kW Lithium
Product Details
Kodak OG3.24 3.0kW Hybrid Off-Grid Axpert VMIII Panels 2.8kW Lithium Battery Storage
Description:
The Kodak OG3.24 3000 24V Hybrid Off-Grid Inverter is a multi-functional inverter and charger, combining the functions of an inverter, solar charger and a battery charger to offer uninterruptible power support in a portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority and acceptable input voltage based on different applications.
This unit comes with a built-in MPPT allowing for Solar capabilities and can power all kinds of appliances on the home or office environment, including motor-type appliances such as tube lights, fans, refrigerators and air-conditioners.
3 (three) year warranty
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterrupted power supply in a portable size. It’s comprehensive LCD display
offers user-configurable and easy accessible button operation such as
battery charging current, AC/solar priority, and acceptable input
voltage based on different applications.
INVERTER SPECIFICATIONS
Rated Power: 3000W
Voltage: 230 VAC
Surge Power: 6000 VA
Battery Voltage: 24 VDC
Solar array: 4000W
Transfer time: 20 ms (typical)
Dimensions (mm): (d) 88 x (w) 257.6 x (h) 320
Weight: 5.7 kg
- Warranty: Standard 3 year warranty
Please note that this unit has a continuous fan and should not be placed in low noise areas such as bedrooms and living rooms
- INVERTER FEATURES AND BENEFITS
- Pure sine wave solar inverter
- Configurable input voltage range for home appliances and personal computers via LC setting
- Configurable battery charging current based on applications via LCD setting
- Configurable AC / solar charger priority via LCD setting
- Compatible to mains voltage to generate power
- Auto restart while AC is recovering
- Overload, over temperature and short circuit protection
- Smart battery charger design for optimized performance
- Cold start function
- Lithium Battery FEATURES AND BENEFITS
The Pylontech UP2500 is the perfect Li-ion battery for any small-medium residential installation. With an incredible DoD of 95% and a charge/discharge power of 1344W, the Pylontech Li-ion has great performance.
- Modular design, easy to upgrade your bank up to 20 batteries
- Usable capacity 2550Wh.
- Safe design ensure optimal safety
- Easy to install
- 0.5C charge/discharge rate (1344W)
- CAN and RS-485 communication
- 6000 cycles at 90% DOD.(temp: 25 degrees).
- 15-year design life.
- 5-year standard product warranty which is extendable to 7-years upon registration.
Power Rating:
When used with Axpert inverters, 1 x 2800Whr Lithium battery will deliver 2550Wh usable energy when discharged at 95% Depth of Discharge (DOD). Therefore, to take into account the expected current draw of the inverter, Solar Corporation recommends that the minimum number Lithium batteries be linked to the site-specific base load as follows:
Recommended Base Load: 1Hour Discharge Rate
| Recommended Base Load | Usage |
No. of 100Ahr Lithium Batteries | Runtime hours |
| 300W | 2100Whr | 1 x (90% DOD 2300Whr) |
7 |
| 600W | 2100Whr | 1 x (90% DOD 2300Whr) | 3.5 |
| 1000W | 2000Whr | 1 x (90% DOD 2300Whr) | 2 |
| 800W | 4400Whr | 2 x (90% DOD 4600Whr) | 5.5 |
| 500W |
4500Whr |
2 x (90% DOD 4600Whr) | 9 |
Its max DC input voltage for 500V makes it ideal for 10 X 72 cell modules (320W - 540W) or 12 X 60 cell modules (260W - 400W).

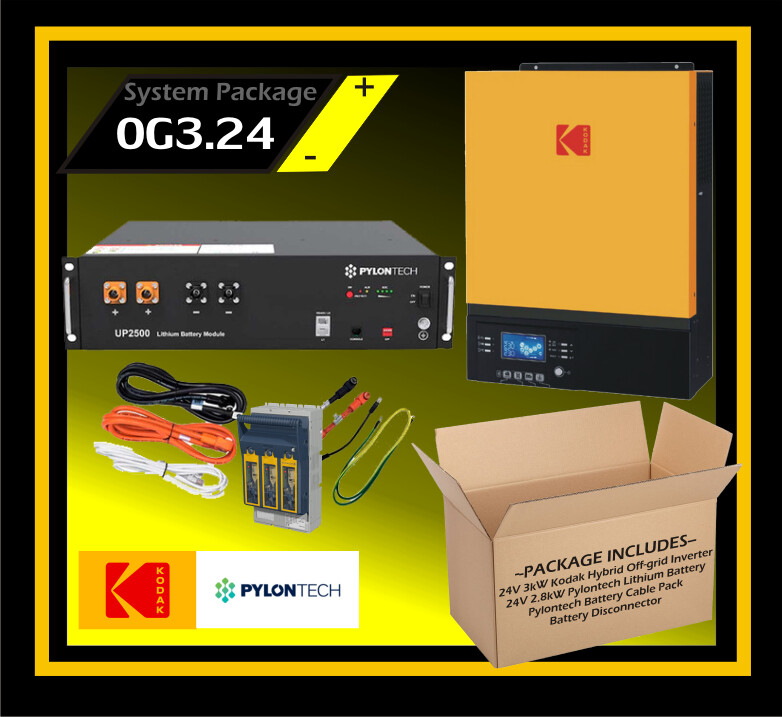

The OG3.24 package includes:
- 1 x Kodak OG3.24 Off-Grid Solar Inverter 3.0kW 24V
- 1 x Pylontech 24V 2.8kW Lithium Battery (2550W)
- 1 x Pylontech Battery Cable Pack
- 1 x Battery Disconnect with 2 x 125A Blade Fuses
Kodak OG3.24 System Performance:
The Kodak OG3.24 Inverter have a rated power output of 3000W and have a maximum solar panel array power of 4000W
1 x Pylontech 2.8kW Lithium battery you will have 2550Whr usable energy if you discharge the battery to 95% depth of discharge (DOD) every day.
- Nominal Energy: 2550 Wh
-
- Depth of discharge: 95.00 %
-
- Voltage: 24 V
-
- Continuous Discharge Rate (Normal Use): 1344 W
-
- Maximum Discharge Rate (5 Minutes): 1344 W
-
- Surge Discharge Rate (15 Seconds): 2664 W
-
- Maximum Charge Rate (5 Minutes): 1344 W
-
