Axpert OG-10 Off-Grid Inverter is equipped with a Dual MPPT
solar controller to maximise and regulate DC power from the solar array
to charge the Battery.
Transformer-less design provides reliable power conversion in a compact
size.
The new generation Axpert OG-10 Off-Grid Inverter comes with a
built-in Wi-fi function and mobile monitoring can be carried out by
downloading and installing the APP on your smartphone.
Data can be accessed and recorded in the inverter, which is convenient
for tracking the operation status of the inverter.
The Kodak OG-10 Inverter also supports USB on-the-go function for
easy rewriting of internal parameters, data downloads and software
updates.
The KodakOG-10 Off-Grid inverter has the following key
features:
Pure Sine Wave MPPT solar inverter
Customisable status LED ring with RGB lights
Large 5" LCD touch screen
Wide DC input range
Supports USB on-the-go function
Datalog events stored in the inverter
Built-in Wi-fi for mobile monitoring
Reserved communication port for BMS
Battery independent function
Parallel operation up to 9 units
INVERTER SPECIFICATIONS
Rated Power: 10000 VA / 10000 W
Input Voltage: 230 VAC
Output Voltage: 230 VAC
Battery Voltage: 48 VDC
Solar Charge Type: MPPT
Parallel Operation: Yes – up to 6 units
PV Operating Voltage Range: 120 – 430 V
MAX. PV Array Power: 10000W
MAX PV Array Open Circuit Voltage: 450 VDC
Waveform: Pure sine wave
Parallel Function: Yes
Dimensions (mm): (d) 158 x (w) 503 (h) 530
Weight: 20.0kg
Warranty: 3 year warranty
Lithium Battery FEATURES AND BENEFITS
The BL3.6 Kodak battery is a high performance, scalable battery module. The incredible 1.5C (5000W) charge and discharge rate ensure you have the power when it is demanded. Each module has a capacity of 3.68kWh and can parallel up to 15 units for a total of 55.2kWh.
Installation is easy, with a plug and play solution that can save time when installing.
3.68kWh parallelable up to 15 units for a total of 55.2kWh
95% DoD - High DoD ensures you get the maximum out of the battery
Easy to install - No racks or extra mounting brackets required. Save valuable time on site
>6000 Life cycle - 80%DOD perfect for high cycle applications like off-grid or self-consumption systems
CAN/RS485 communication - Ensure seamless communication with KODAK and SOLIS range of inverter
Power Rating:
When used with Axpert inverters, 1 x 75Ahr (3.6Whr) Lithium battery will deliver 3600Wh usable energy when discharged at 95% Depth of Discharge (DOD).Therefore, to take into account the expected current draw of the inverter, Solar Corporation recommends that the minimum number Lithium batteries be linked to the site-specific base load as follows:
Recommended Base Load: 1Hour Discharge Rate
Recommended Base Load
Usage
No. of 100Ahr Lithium Batteries
Runtime hours
300W
3600Whr
1 x (95% DOD 4600Whr)
12
600W
3600Whr
1 x (95% DOD 3600Whr)
6
1000W
3600Whr
1 x (95% DOD 3600Whr)
3.5
800W
7200Whr
2 x (95% DOD 7200Whr)
9
500W
7200Whr
2 x (95% DOD 7200Whr)
14.5
Its max DC input voltage for 450V makes it ideal for 10 X 72 cell modules (320W - 540W) or 12 X 60 cell modules (260W - 400W).

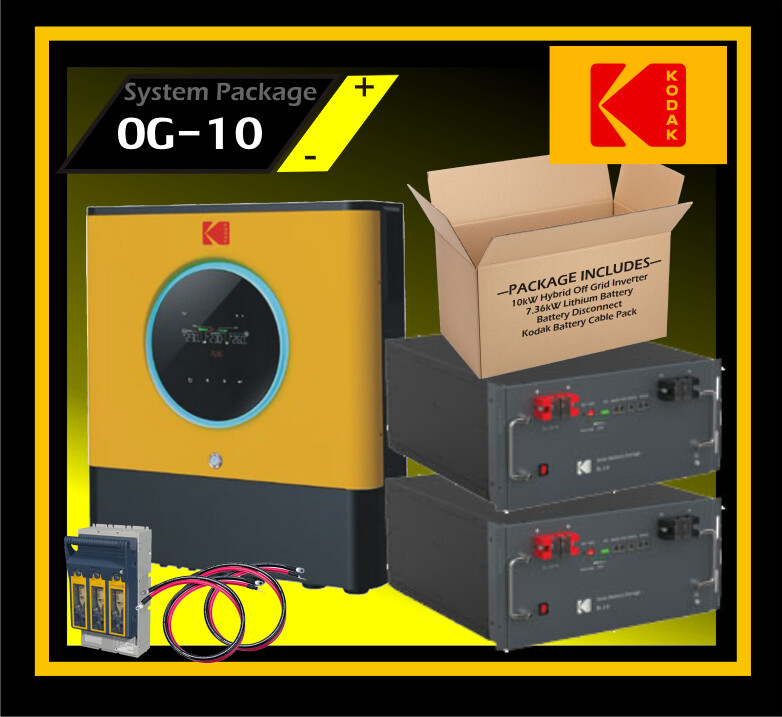

The OG-10 package includes:
1 x Kodak OG-10 Hybrid Off-Grid Solar Inverter 10kW 48V
2 x Kodak BL3.6 48V 7.36kW Lithium Battery
1 x Kodak Battery Cable Pack
1 x Battery Disconnect with 160A Blade Fuses
OG-10 System Performance:
The Kodak OG-10 Inverter have a rated power output of 10000W and have a maximum solar panel array power of 10000W
2 x Kodak BL3.6 kW Lithium battery you will have 7.36Whr usable energy if you discharge the battery to 95% depth of discharge (DOD) every day.
